| Advertised Exhaust Duration |
318 |
| Advertised Intake Duration |
308 |
| Cam Type |
Cast |
| Computer Controlled Compatible |
No |
| Description_ABR |
Cam Lift kit |
| Description_ASM |
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Camshaft and Lifter Kit |
| Description_DES |
CAMSHAFT KIT |
| Description_EXT |

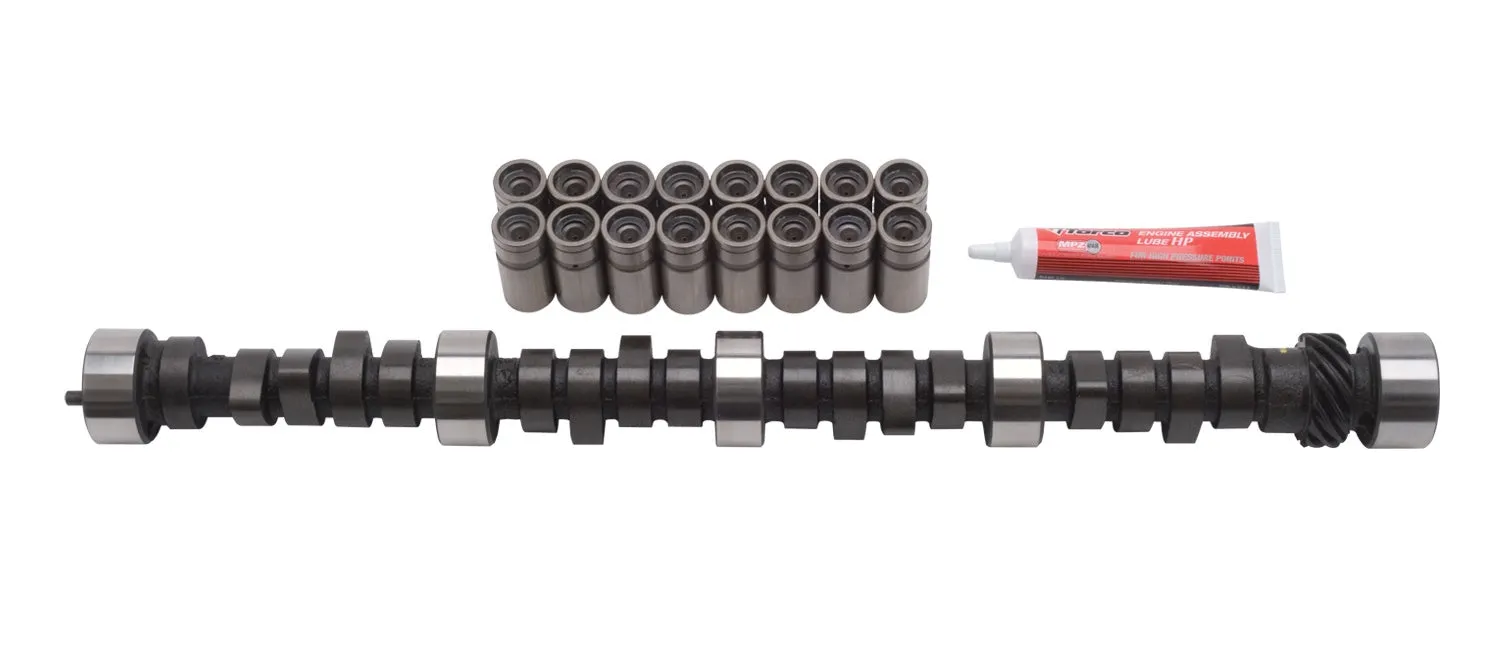

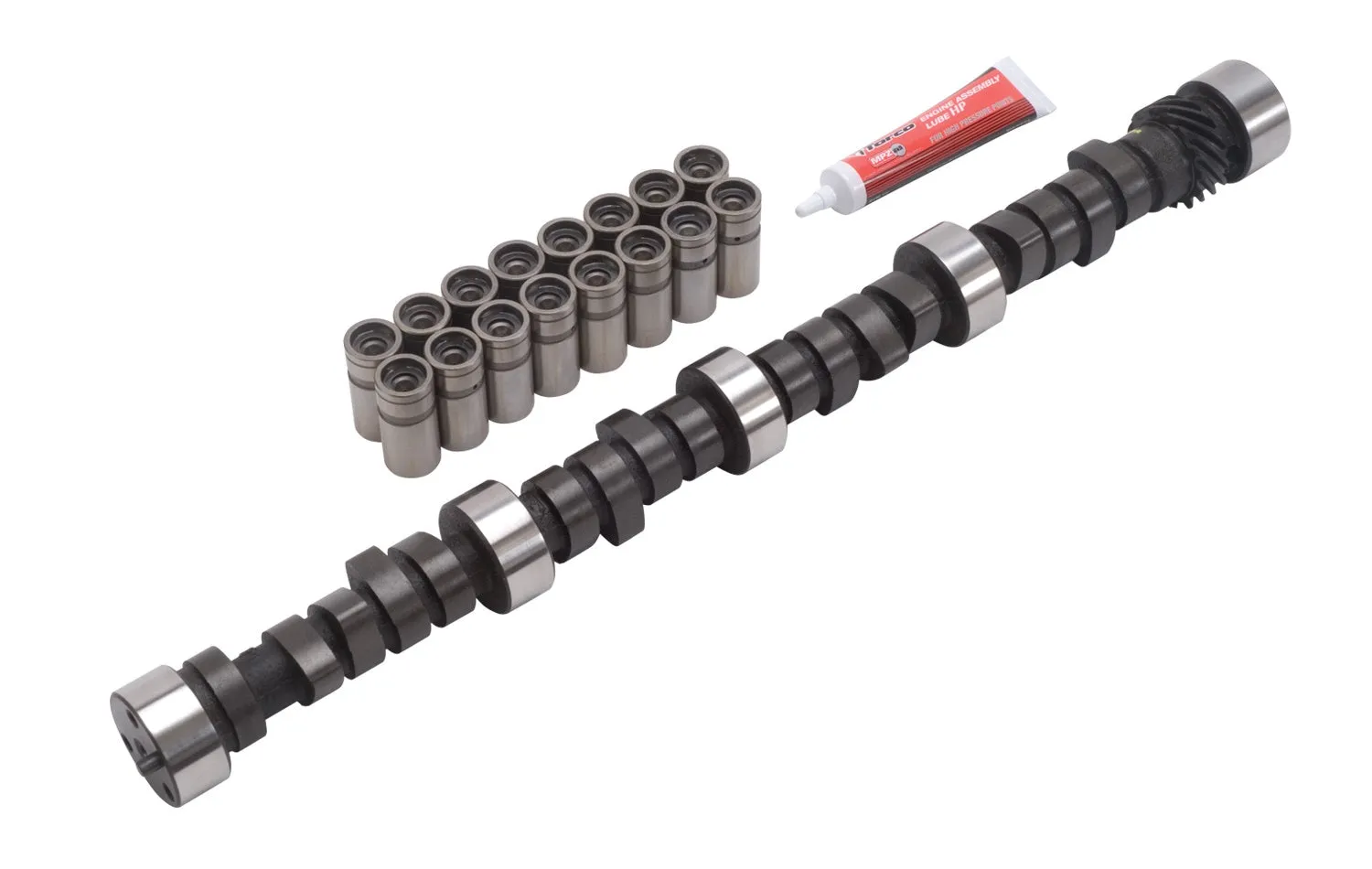

Edelbrock part #7102 Performer RPM Camshaft is designed for 1957-1986 small-block Chevy 283-400 V-8. This Edelbrock cam kit produced 410 HP & 408 ft-lbs. of torque when used with #7501 intake and #60899 cylinder heads on a 350 engine. |
| Description_EXT |
Edelbrock part #7102 Performer RPM Camshaft is designed for 1957-1986 small-block Chevy 283-400 V-8. This Edelbrock cam kit produced 410 HP 408 ft-lbs. of torque when used with #7501 intake and #60899 cylinder heads on a 350 engine. |
| Description_FAB |
10 To 12 in. Of Manifold Vacuum At Idle |
| Description_FAB |
Designed for 1500 to 6500 RPM Performance |
| Description_FAB |
Dyno-Matched/Street-Proven Performance |
| Description_FAB |
Includes Hydraulic Lifters and Assembly Lube |
| Description_FAB |
Matched to Edelbrock Performer RPM Intakes |
| Description_FAB |
Maximum Power in High-RPM with Good Low-End Torque |
| Description_FAB |
More Lift And Duration Than Most Street Camshafts |
| Description_FAB |
Take the Guesswork Out of Camshaft Selection! |
| Description_INV |
Edelbrock Performer RPM Camshaft Kit |
| Description_KEY |
Edelbrock; Performer RPM; Camshaft; lifters; Camshaft Kit; Cam and lifter kit; hydraulic lifters; flat tappet; 7102; Chevy |
| Description_LAB |
Performer-Plus Camshaft Kit for Small-Block Chevy 283-400 V8 |
| Description_MKT |
Edelbrock part #7102 Performer RPM Camshaft is designed for 1957-1986 small-block Chevy 283-400 V-8 applications. This Edelbrock cam kit produced 410 HP & 408 ft-lbs. of torque when used with #7501 intake and #60899 cylinder heads on a 350 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft. Camshaft Specifications: - Duration @ .050 Intake: 234 degrees - Duration @ .050 Exhaust: 244 degrees - Lift @ Valve Intake: .488" - Lift @ Valve Exhaust: .510" - Lobe Separation: 112 Degrees - Intake Centerline: 107 Degrees - Idle Vacuum @ 1000 RPM's: 11" |
| Description_MKT |
Edelbrock part #7102 Performer RPM Camshaft is designed for 1957-1986 small-block Chevy 283-400 V-8 applications. This Edelbrock cam kit produced 410 HP & 408 ft-lbs. of torque when used with #7501 intake and #60899 cylinder heads on a 350 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft.Camshaft Specifications:- Duration @ .050 Intake: 234 degrees - Duration @ .050 Exhaust: 244 degrees- Lift @ Valve Intake: .488"- Lift @ Valve Exhaust: .510"- Lobe Separation: 112 Degrees- Intake Centerline: 107 Degrees- Idle Vacuum @ 1000 RPM's: 11" |
| Description_SHO |
{ Sellable : Yes } |
| Description_SHP |
{ eo : 3in.} |
| Description_TRA |
Adjustable valvetrain required |
| Description_TRA |
Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to prevent cam lobe and lifter wear from occurring during initial start-up. |
| Description_TRA |
Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm. |
| Description_TRA |
Do not use rotator type valve springs or retainers for this application. |
| Description_TRA |
In order for this Performer RPM cam and lifter kit to be covered under ANY WARRANTY you MUST use the correct Edelbrock Sure Seat Valve Springs or equivalent. |
| Description_TRA |
Oil/additive must contain Zinc designed for use with flat tappet camshafts. |
| Description_TRA |
Recommended Valve Springs for OEM heads: Edelbrock part #5703 |
| Description_TRA |
Use only stock ratio rocker arms |
| Description_TRA |
• Recommended Valve Springs for OEM heads: Edelbrock part # 5703 • Use only stock ratio rocker arms • Adjustable valvetrain required • In order for this Performer RPM cam and lifter kit to be covered under ANY WARRANTY you MUST use the correct Edelbrock Sure Seat Valve Springs or equivalent. • Do not use rotator type valve springs or retainers for this application. • Oil/additive must contain Zinc designed for use with flat tappet camshafts. • Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to prevent cam lobe and lifter wear from occurring during initial start-up. • Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm. |
| Engine Make/Size |
Chevy Small Block (262-400) |
| Exh. Duration @ .050 in. (Deg) |
244 |
| Exh. Duration Advertised (Deg) |
318 |
| Exhaust Duration at .050 inch Lift |
244 |
| Exhaust Valve Lift |
0.510 |
| Exhaust Valve Lift |
0.510 in. |
| Grade Type |
Performance |
| height |
3.75 |
| Intake Duration .050 Inch Lift |
234 |
| Intake Duration @ 0.050 in. |
234 Degree |
| Intake Duration Advertised |
308 |
| Intake Valve Lift |
0.488 |
| Intake Valve Lift |
0.488 in. |
| length |
26.6 |
| Lifter Materials |
Hardened Steel |
| Lifter Type |
Hydraulic |
| Lifter Type |
Hydraulic Flat Tappet |
| Lobe Separation |
112 |
| LTL |
N |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range |
1000-7000 |
| Usage |
Street/Performance |
| WARNING CA Proposition 65 |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight |
13.75 |
| width |
8.0 |
