| Configuration |
Multi Piece |
| Description_ABR |
INT MAN GASK |
| Description_ASM |
Chevrolet:V6:170 (2.8L) |
| Description_DEF |

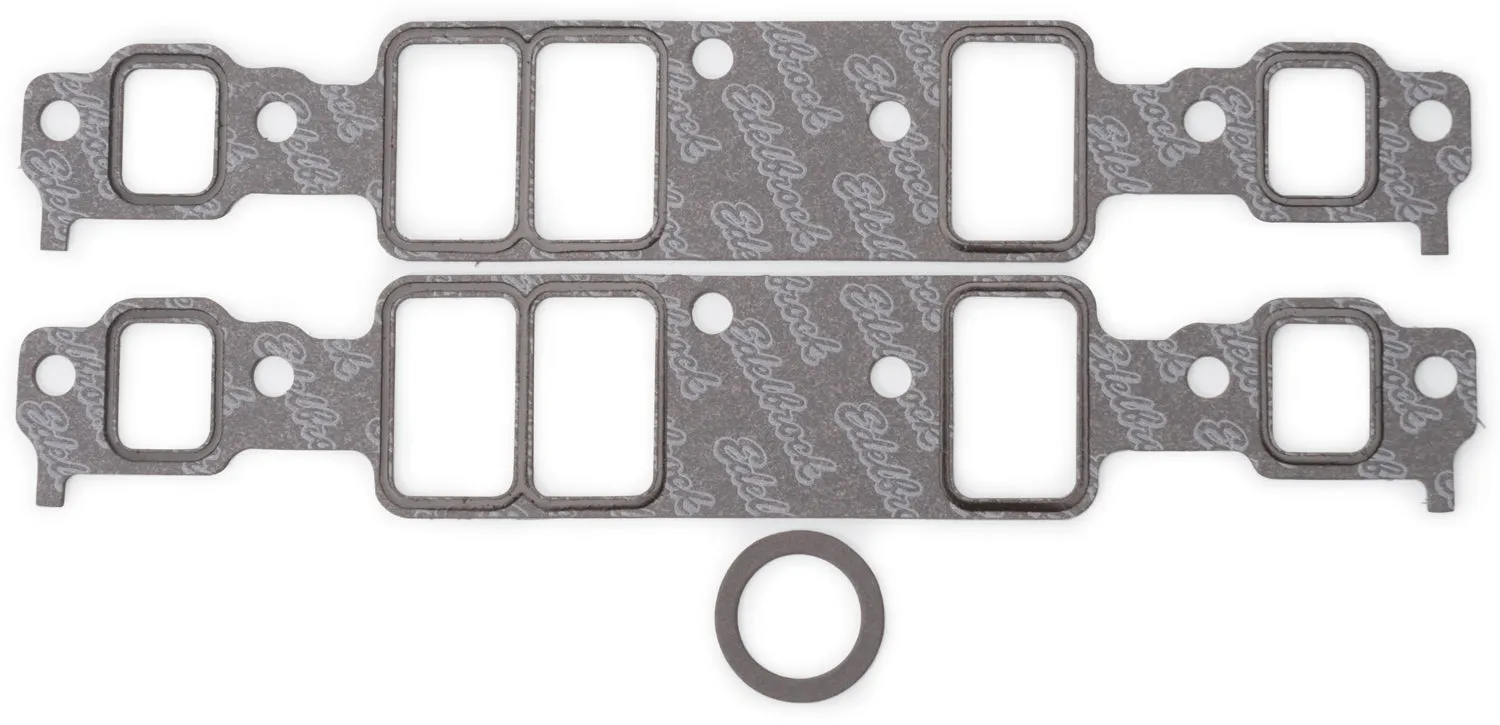

Engine Intake Manifold Gasket Set |
| Description_DES |
GASKET |
| Description_EXT |
Edelbrock Intake Manifold Gasket for 1985-1995, Chevy V6 200-229-262. Top quality Edelbrock gaskets ensure a perfect seal every time. |
| Description_EXT |
Edelbrock Intake Manifold Gasket for 1985-1995; Chevy V6 200-229-262. Top quality Edelbrock gaskets ensure a perfect seal every time. |
| Description_FAB |
Clean Positive Seal |
| Description_FAB |
Embossed Silicone Bead Surrounding The Port |
| Description_FAB |
Matched To Manifolds And Cylinder Heads |
| Description_INV |
Edelbrock Intake Manifold Gasket |
| Description_KEY |
7209; Intake; intake gasket; Chevy; small block Chevy; engine; Edelbrock; V6 Chevy |
| Description_LAB |
Intake Manifold Gasket for 1985-1995, Chevy V6 200-229-262 |
| Description_LAB |
Intake Manifold Gasket for 1985-1995; Chevy V6 200-229-262 |
| Description_MKT |
Edelbrock part #7209 Intake Gaskets for 1985-1995, Chevy V6 200-229-262 (3.8 and 4.3L) allow for optimum flow and performance. Any gasket can create a seal, but a good gasket can do it with less clamping force, and for a longer period of time. The new MP-2N Micropore technology does not use solvents making our gaskets environmentally friendly. Impervious to most chemicals, this synthetic fiber composite provides a high recovery under load. This means that when compressed, the gasket will conform to any imperfections on the sealing surface even using lower flange pressures. A nitrile bead around each port opening makes the seal even better. |
| Description_SHO |
{ Sellable : Yes } |
| Description_SHP |
{ eo : 0in.} |
| Description_TRA |
Port Size: 1.28" x 2.10" |
| Description_TRA |
Silicon beads facing up towards intake manifold |
| Description_TRA |
Thickness: .060" |
| Description_TRA |
We recommend the use of Edelbrock Gasgacinch (Part #9300) on the intake manifold mounting surfaces of the cylinder head and on the bottom side of the intake manifold gaskets (side without silicon beads). The Gasgacinch will secure the gaskets in place, ensuring a proper seal. |
| Description_TRA |
• Port Size: 1.28in. x 2.10in. • Thickness: .060in. • We recommend the use of Edelbrock Gasgacin. (Part #9300) on the intake manifold mounting surfaces of the cylinder head and on the bottom side of the intake manifold gaskets (side without silicon beads). The Gasgacin. will secure the gaskets in place; ensuring a proper seal. • Silicon beads facing up towards intake manifold |
| finish |
Grey |
| height |
26.375 |
| length |
5.125 |
| LTL |
N |
| Manifold Gasket Bolt Hole Quantity |
6 |
| Material |
Synthetic Fiber composite |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valley Pan Included |
No |
| weight |
3.15 |
| width |
4.0 |
