| Basic Operating RPM Range |
3500-8500 |
| Center Maximum Height |
6.950 |
| CNC Ported |
No |
| Cylinder Head Type |
Rectangular Port |
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_DES |
INTAKE MANIFOLD |
| Description_EXT |
Edelbrock Super Victor Tall Deck Intake Manifold For Chevrolet 500 Ci. Big-Block V8 |
| Description_EXT |
Edelbrock Super Victor Tall Deck Intake Manifold For Chevrolet 500 Ci. Big-Block V8 |
| Description_FAB |
For 3500 to 8000 RPM High-Performance Engines |
| Description_FAB |
For Race Use Only |
| Description_FAB |
Ideal For 500 cid Engines |
| Description_FAB |
Ideal For Big Block Drag Eng. w/High Flow Req. |
| Description_FAB |
Single-Plane Manifold |
| Description_FAB |
Use On Tall-Deck Blocks w/o Manifold Spacers |
| Description_INV |
Super Victor Tall Deck 10.2 Intake Manif |
| Description_KEY |
2916; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor; Satin |
| Description_LAB |
Super Victor Tall Deck BBC Intake Manifold |
| Description_MKT |

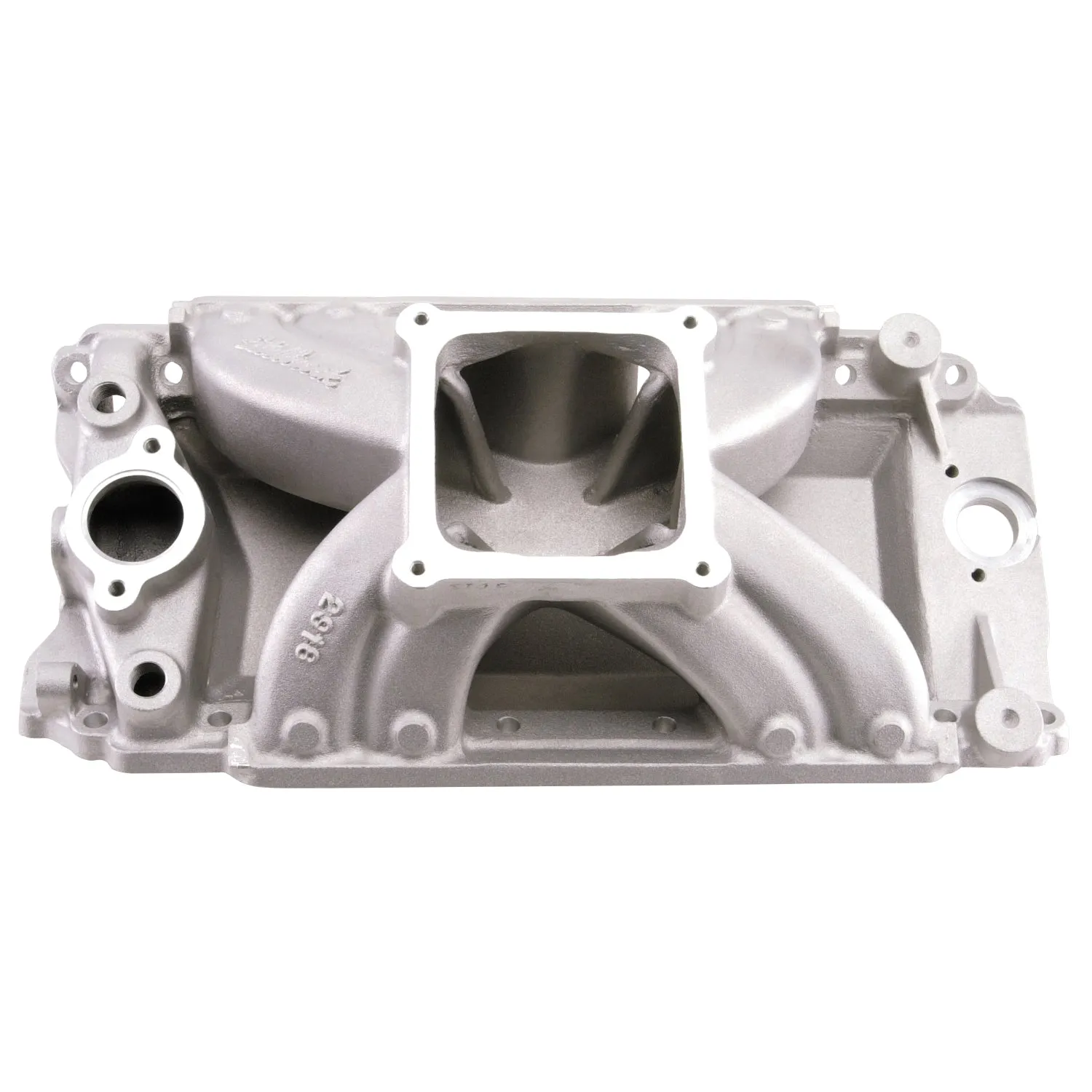

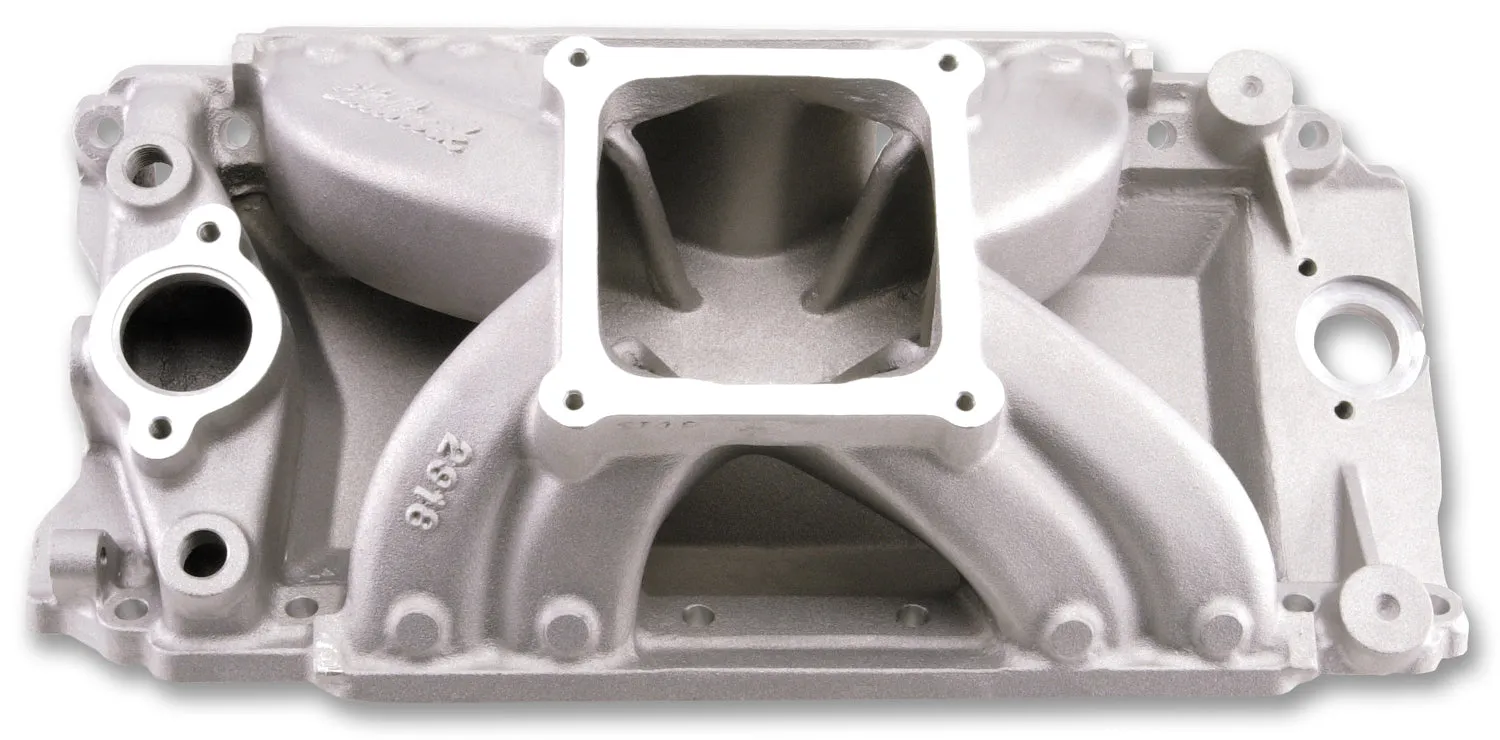

Edelbrock part #2916 Super Victor BBC Tall-Deck intake manifold is designed for Chevy big-blocks with rectangular port cylinder heads. This single-plane manifold is ideal for 500 cubic-inches or any big-block drag race engine with high air flow requirements. In dyno testing, Super Victor #2916 Tall-Deck outperformed the competition out-of-the-box with just a port match and minor blending of critical surfaces. |
| Description_SHO |
{ Sellable : Yes } |
| Description_SHP |
{ eo : 2in.} |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Manifold height: A-6.95", B-6.95" |
| Description_TRA |
Recommended intake gasket: Edelbrock #7208, Fel-Pro #1275 |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
• Recommended intake gasket: Edelbrock # 7208; Fel-Pro # 1275 • Manifold height: A-6.95in.; B-6.95in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port |
No |
| Emission |
Without EGR |
| Engine Make/Size |
Chevy Big Block (396-502) |
| finish |
Satin |
| Flange Type |
4500 |
| Front Maximum Height |
6.950 |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| height |
9.5 |
| length |
24.1 |
| LTL |
N |
| Material |
Aluminum |
| Number of Carbs |
One |
| Position |
N/A |
| Rear Maximum Height |
6.950 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range |
3500-8500 |
| Series |
Victor |
| Single Or Dual Plane Type |
Single |
| Usage |
Racing |
| Vehicle Model |
Chevrolet |
| WARNING CA Proposition 65 |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight |
26.65 |
| width |
16.4 |
