| Basic Operating RPM Range |
3500-8500 |
| Center Maximum Height |
7.500 |
| CNC Ported |
No |
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Big-Block Race |
| Description_DEF |
Engine Intake Manifold |
| Description_DES |
INTAKE MANIFOLD |
| Description_EXT |
Edelbrock Super Victor II Intake Manifold for Tall Deck Chevrolet Big-Block V8 |
| Description_FAB |
5.38 Square in. Of Runner Area In Plenum |
| Description_FAB |
Excellent For Large Displacement Drag Racing Eng. |
| Description_FAB |
Extra Large Carb Outer Flange |
| Description_FAB |
For 3500 to 8500 RPM High-Performance Engines |
| Description_FAB |
Single-Plane Race Manifold |
| Description_FAB |

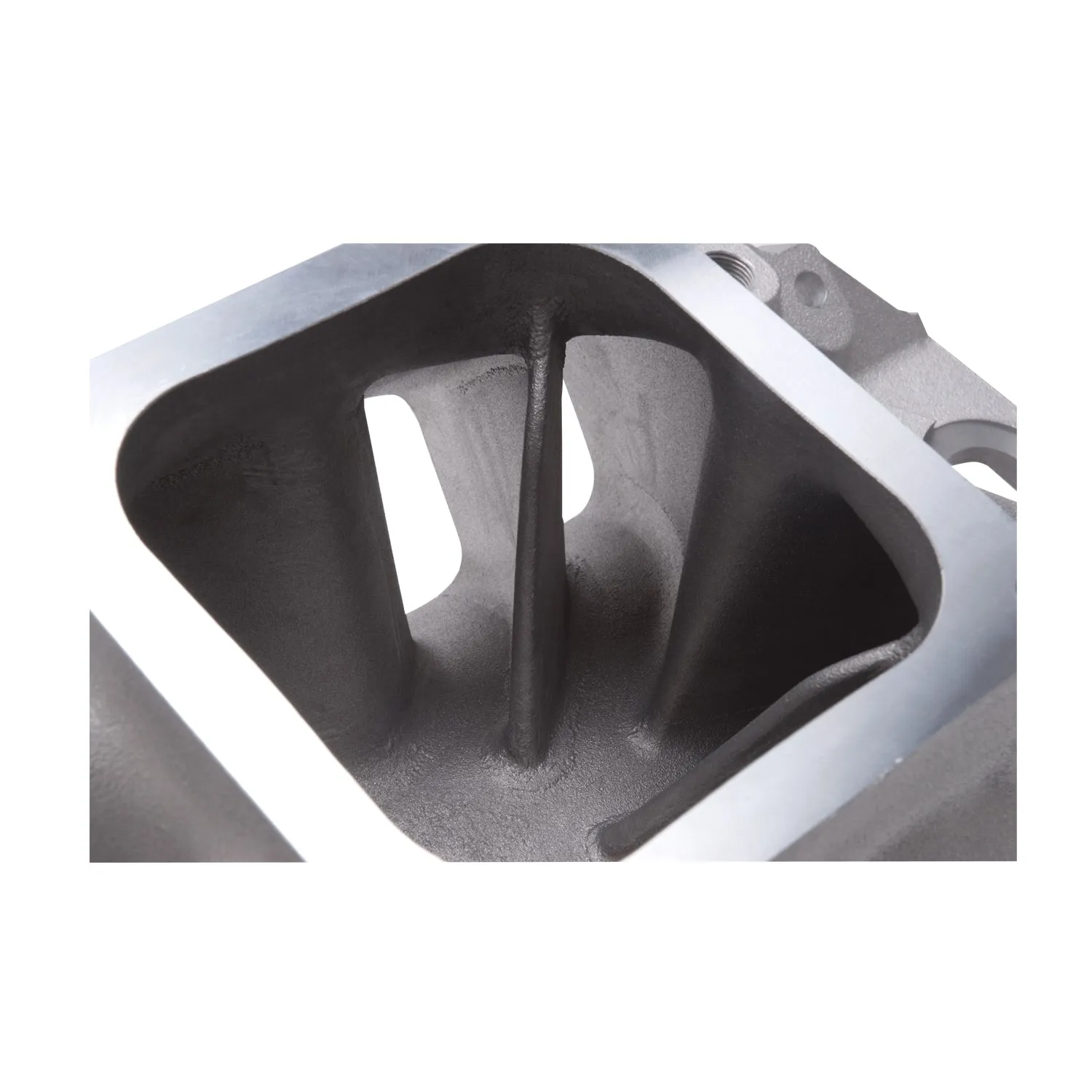

Smooth Divider Walls For Better Air Distribution |
| Description_INV |
Super Victor 2 BBC 10.2 Deck Intake |
| Description_KEY |
2897; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor; Satin |
| Description_LAB |
Super Victor II BBC Intake Manifold V8 10.2 Deck |
| Description_MKT |

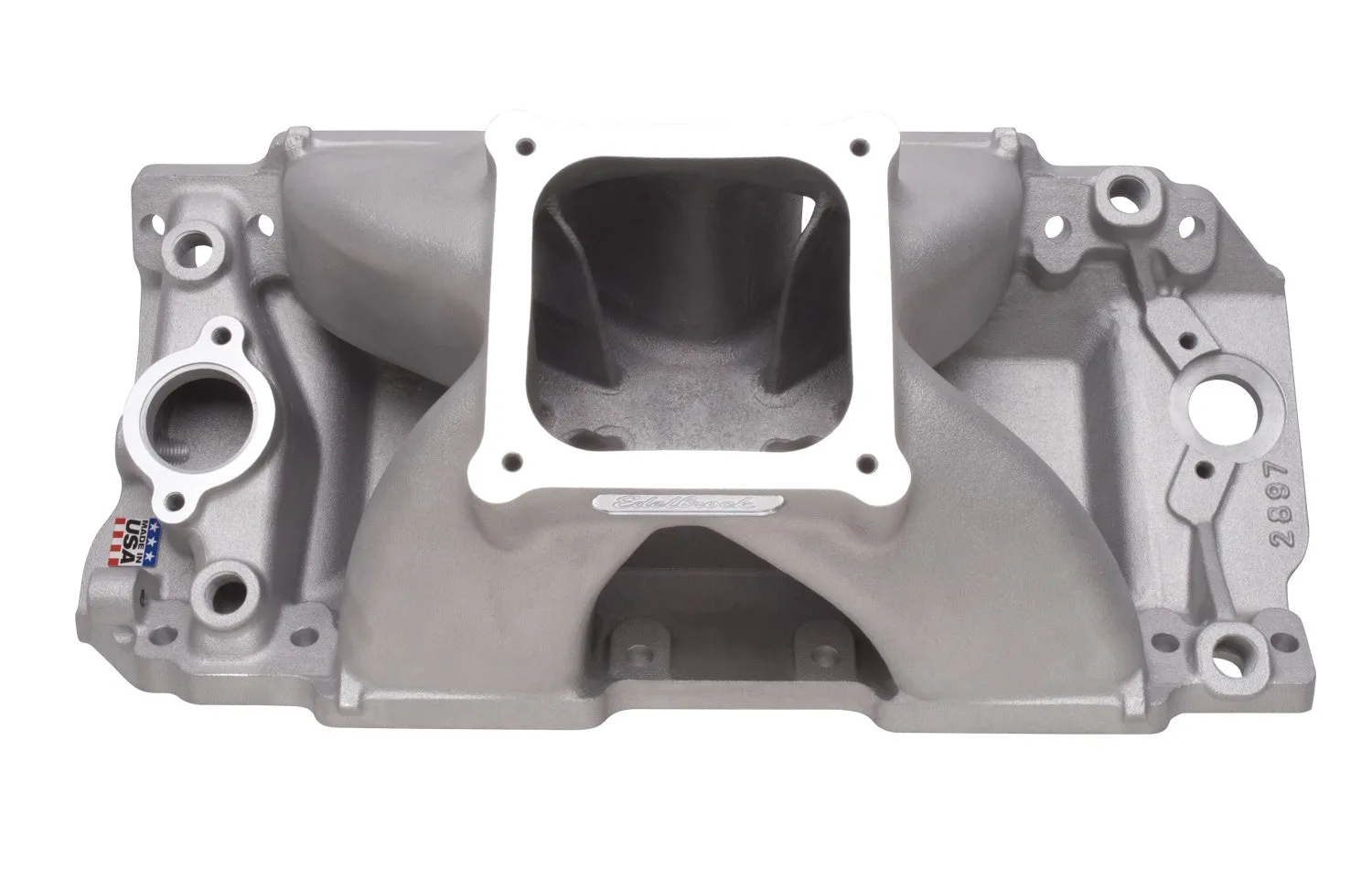

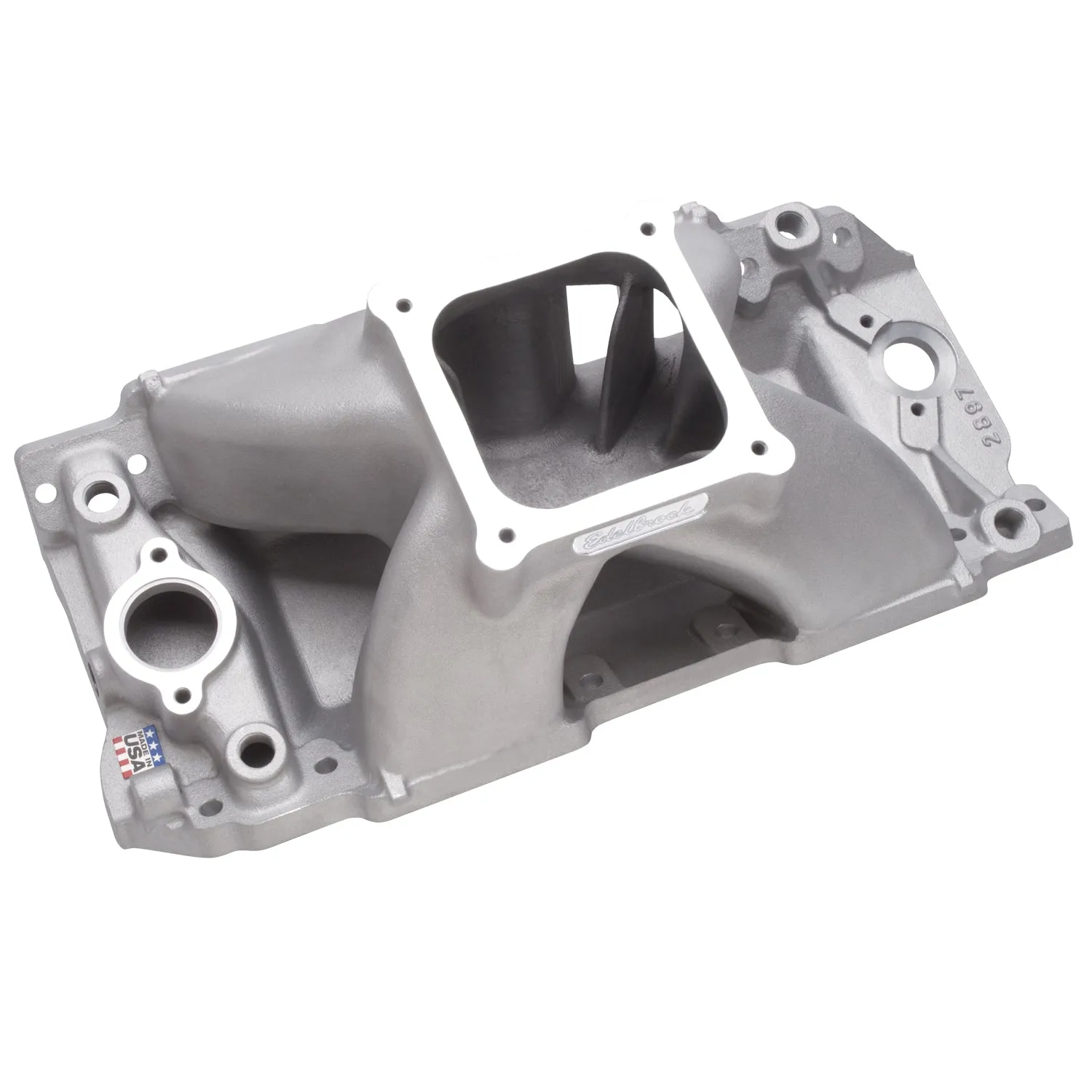

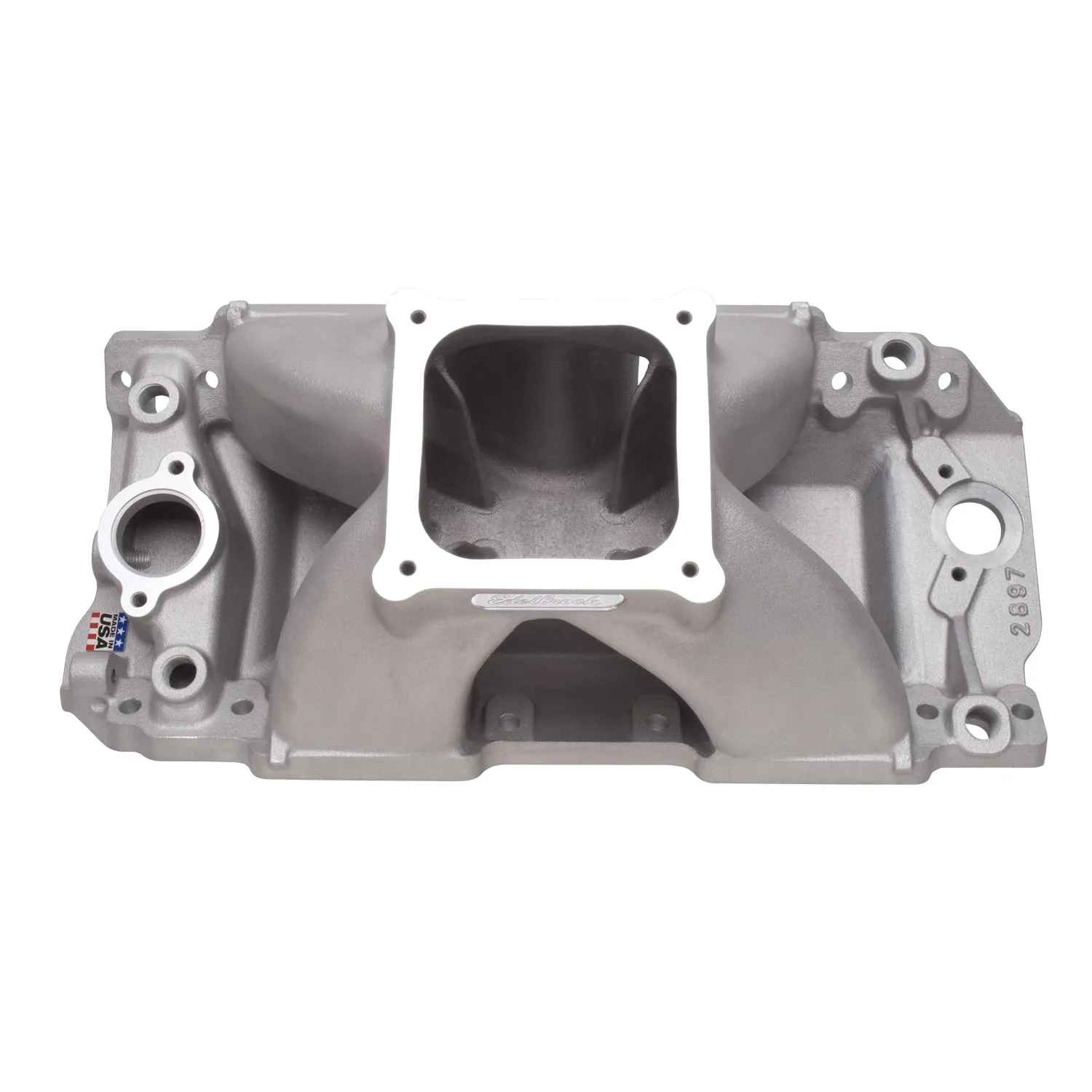

Edelbrock part #2897 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy engines using the latest design conventional rectangular port heads. This single-plane intake manifold is ideal for any 1,000 horsepower drag race engine with high air flow requirements. Manifold #2897 features 5.38 square-inches of runner area at the plenum. Designed for use on tall-deck (10.2") blocks without manifold spacers and accepts standard height distributors. This manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops. Modern casting techniques create smooth, thin, extended divider walls for "out of the box" performance, just port match and go! Edelbrock engineers work in conjunction with leading engine builders from all forms of competition to design manifolds compatible with the latest technology. The Edelbrock Super Victor II #2897 also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA. |
| Description_SHO |
{ Sellable : Yes } |
| Description_SHP |
{ eo : 2in.} |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Manifold height: A-7.50", B-7.50" |
| Description_TRA |
Recommended intake gasket: Fel-Pro #1275 |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
• Recommended intake gasket: Fel-Pro # 1275 • Manifold height: A-7.50in.; B-7.50in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port |
No |
| finish |
Satin |
| Flange Type |
4500 |
| Front Maximum Height |
7.500 |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| height |
9.5 |
| length |
24.25 |
| LTL |
N |
| Material |
Aluminum |
| Rear Maximum Height |
7.500 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series |
Victor |
| Single Or Dual Plane Type |
Single |
| Vehicle Model |
Chevrolet |
| weight |
27.95 |
| width |
16.5 |
