| Basic Operating RPM Range |
3500-8500 |
| Center Maximum Height |
7.560 |
| CNC Ported |
No |
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Big-Block Race |
| Description_DEF |
Engine Intake Manifold |
| Description_DES |
INTAKE MANIFOLD |
| Description_EXT |

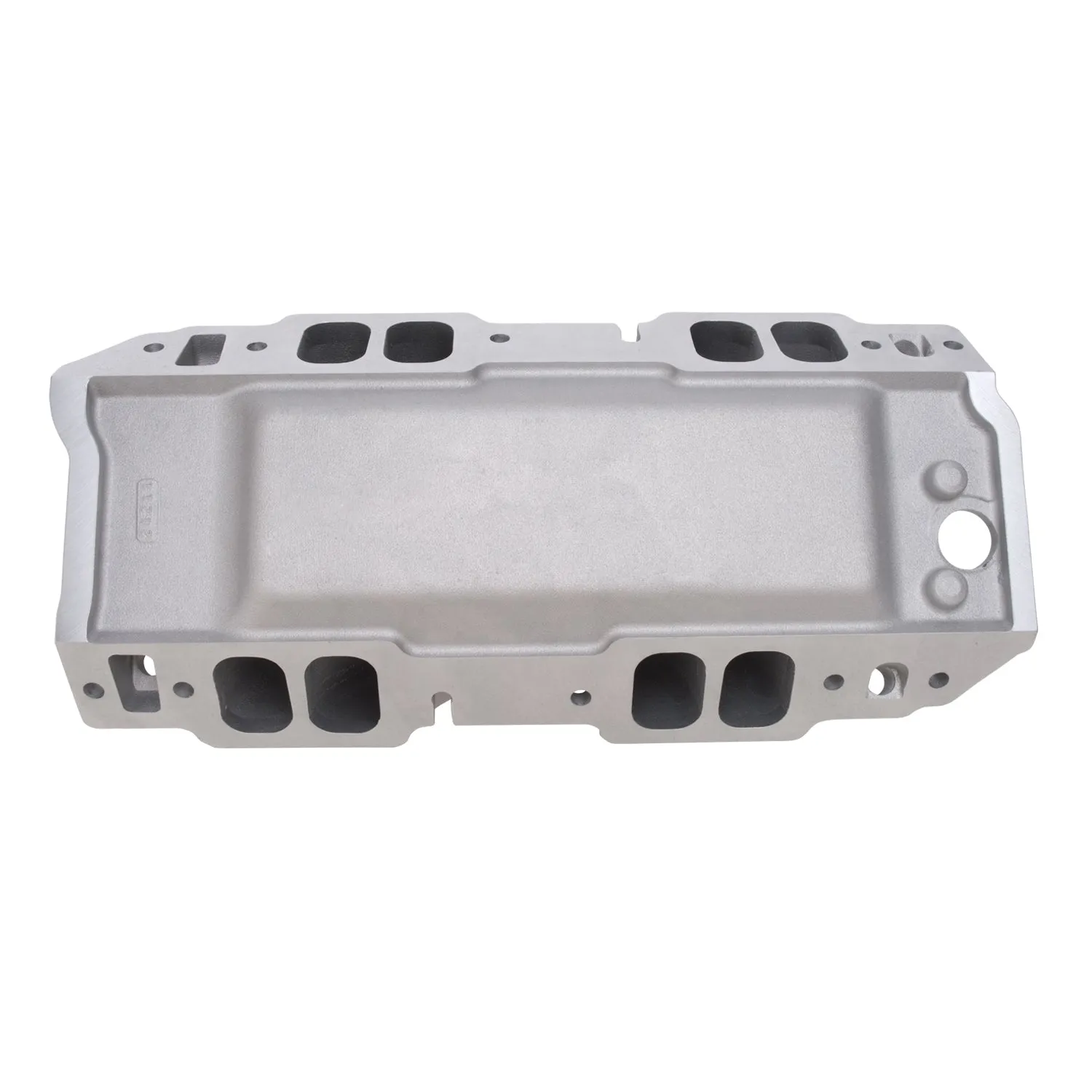

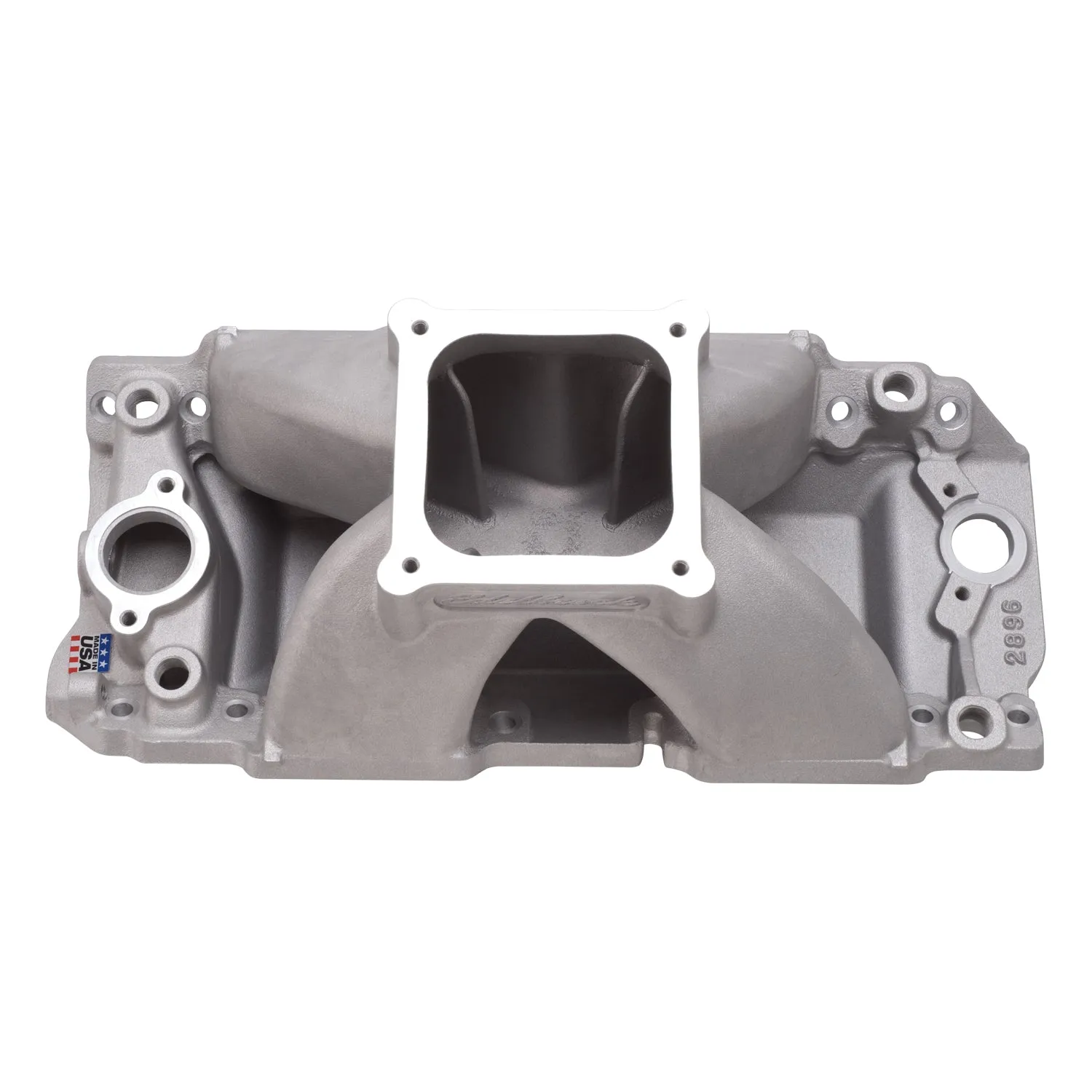

Edelbrock Super Victor II Intake Manifold for Standard Deck Chevrolet Big-Block V8 |
| Description_FAB |
For 3500 to 8000 RPM High-Performance Engines |
| Description_FAB |
Ideal For 500 cid Engines |
| Description_FAB |
Ideal For Big Block Drag Eng. w/High Flow Req. |
| Description_INV |
Super Victor 2 BBC 9.8 Deck STD Deck |
| Description_KEY |
2896; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor; Satin |
| Description_LAB |
Super Victor II BBC Intake Manifold V8 9.8" Deck |
| Description_LAB |
Super Victor II BBC Intake Manifold V8 9.8in. Deck |
| Description_MKT |

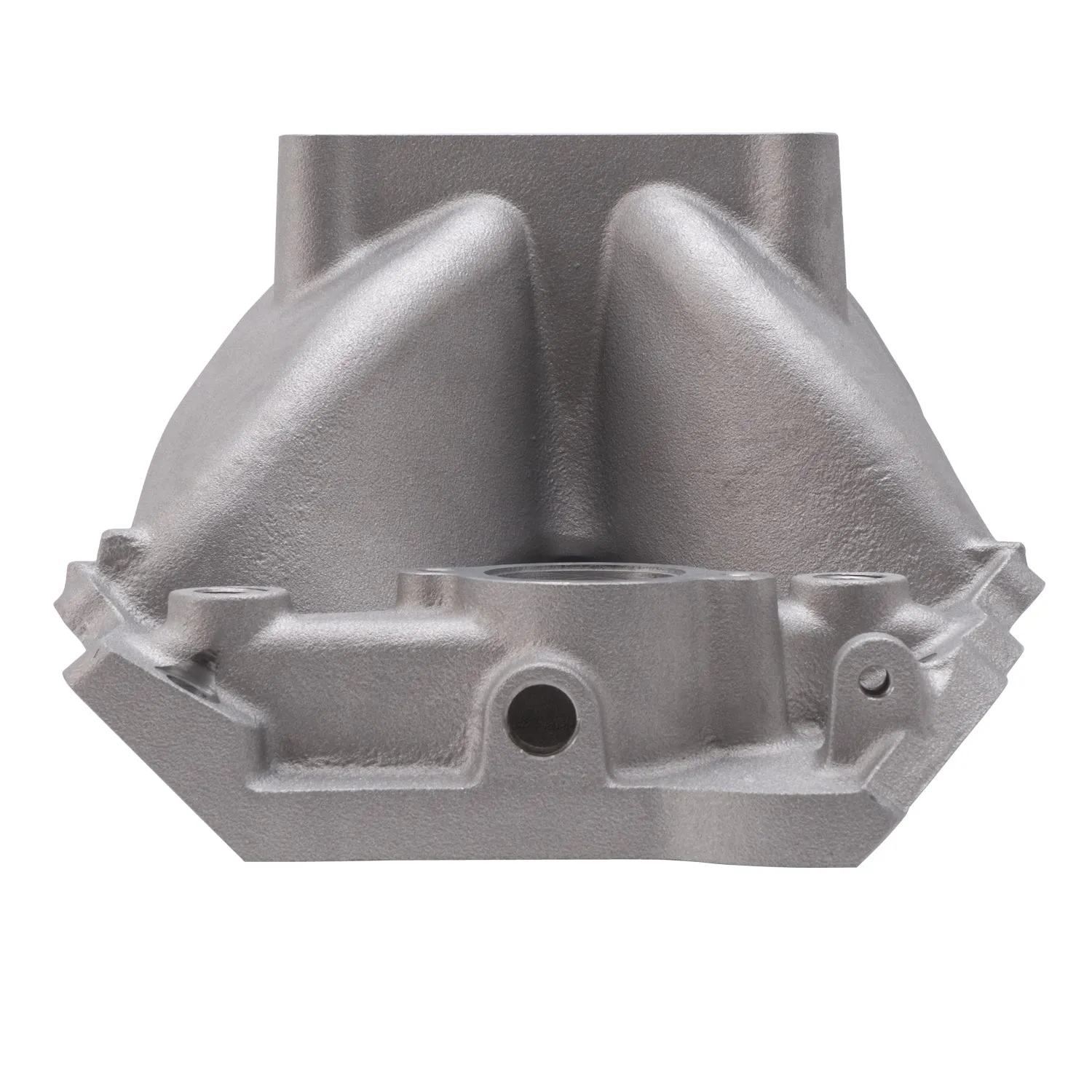

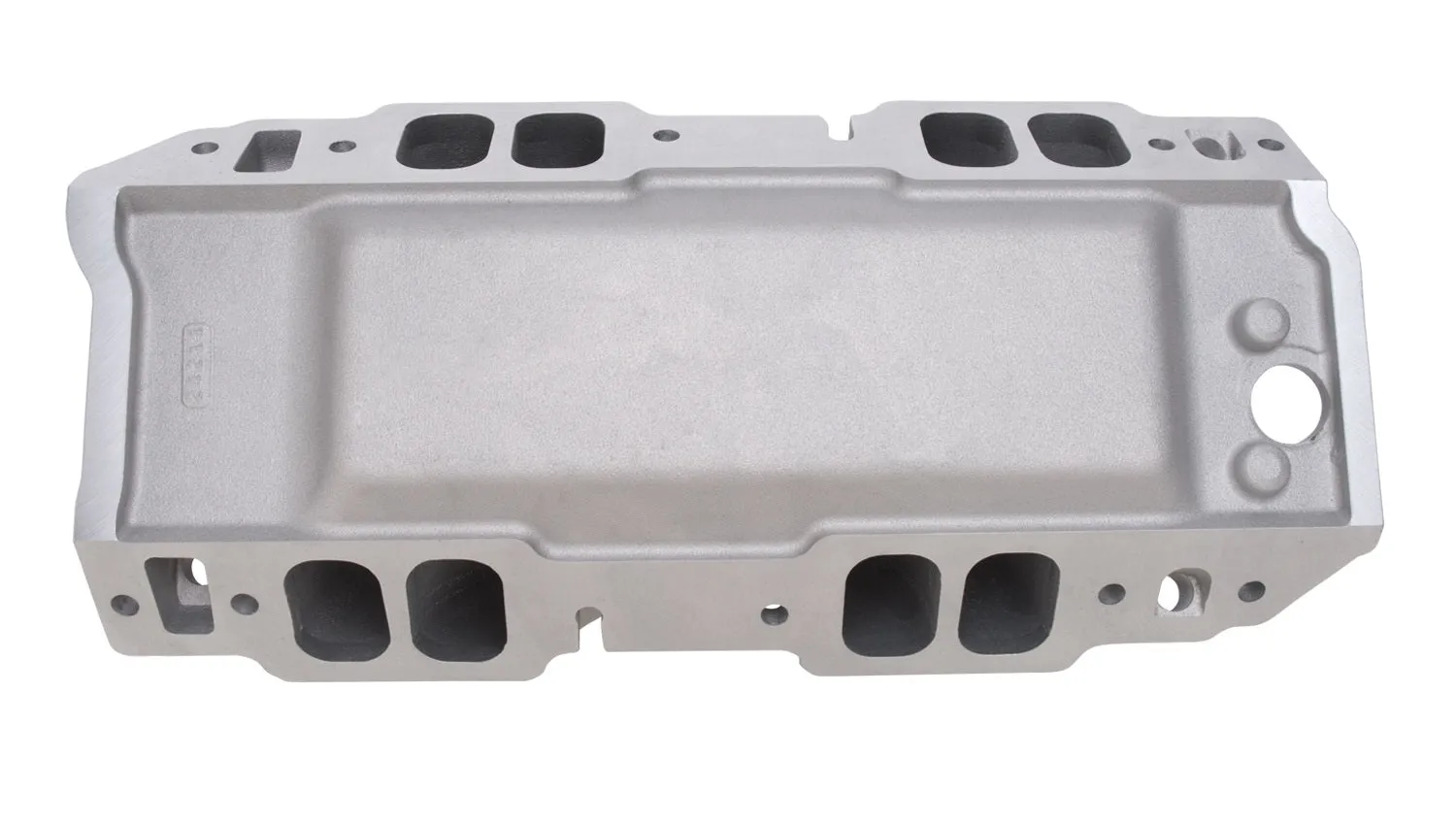

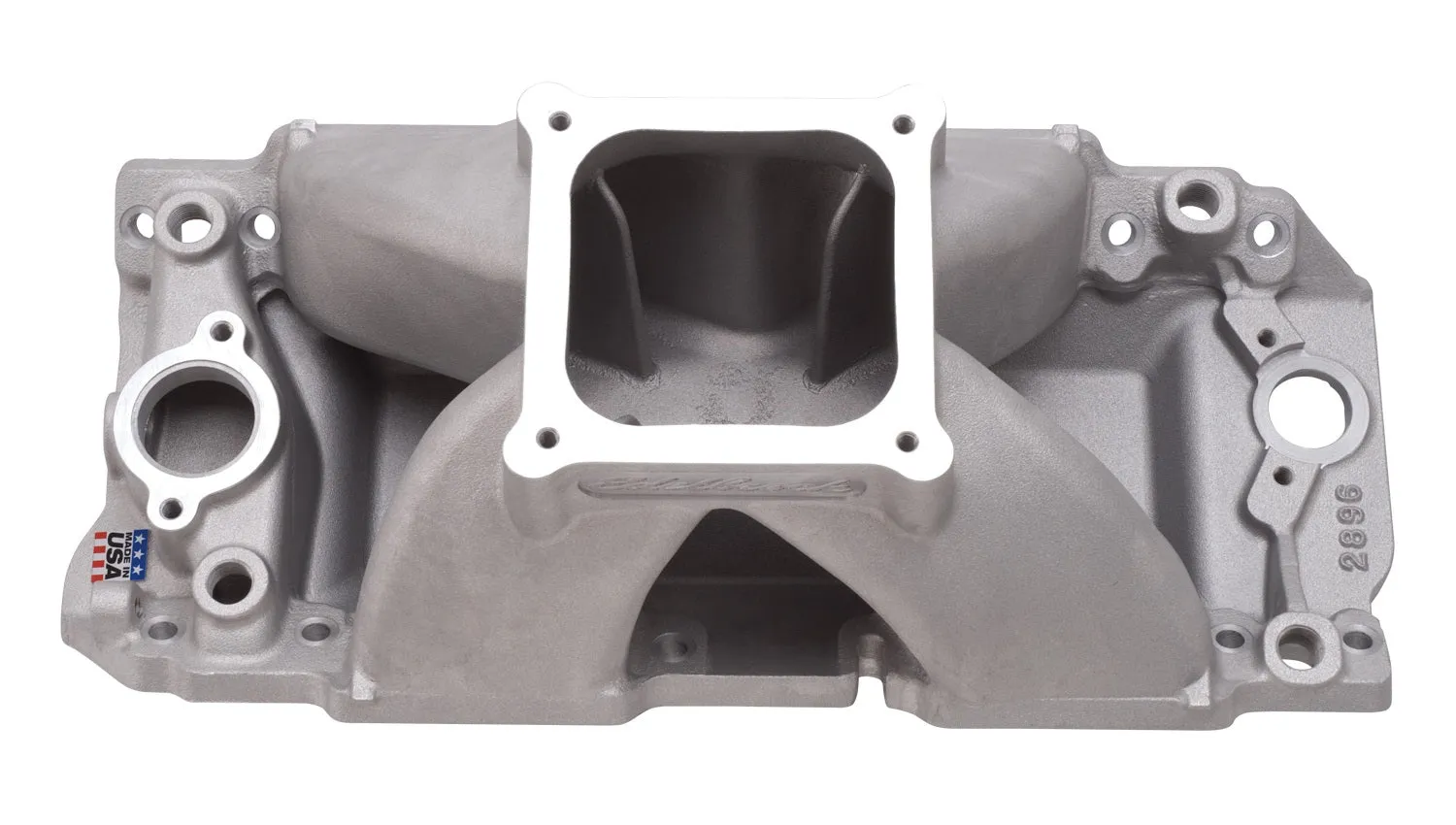

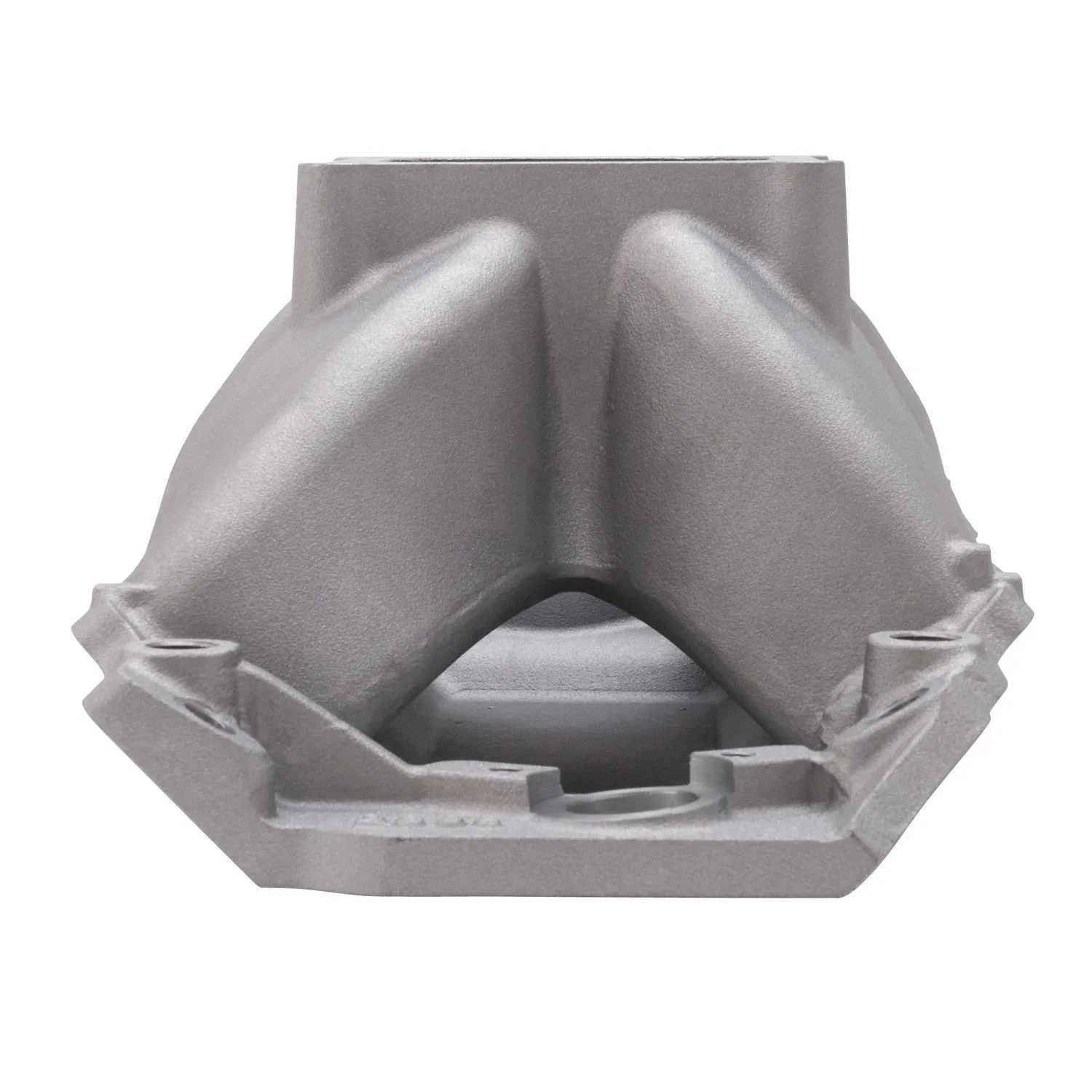

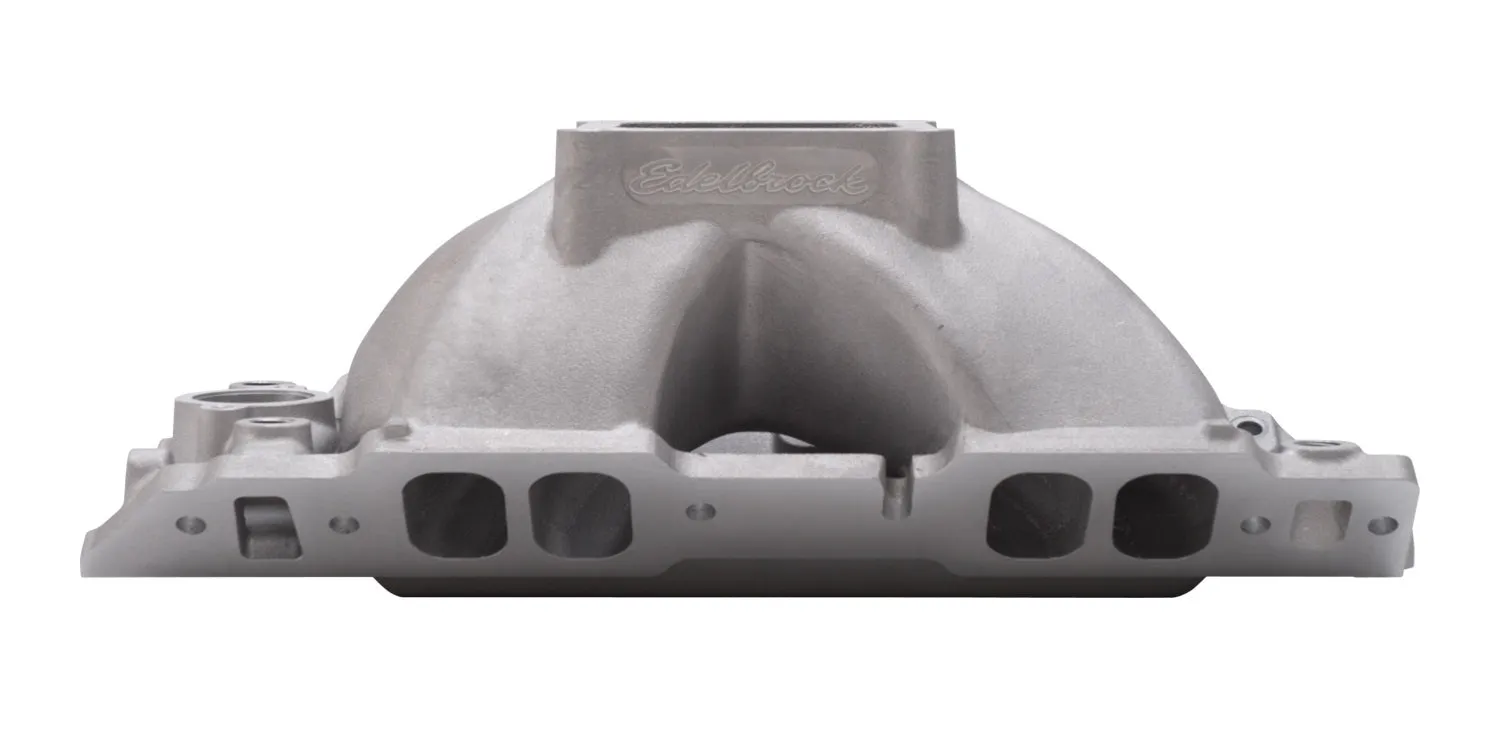

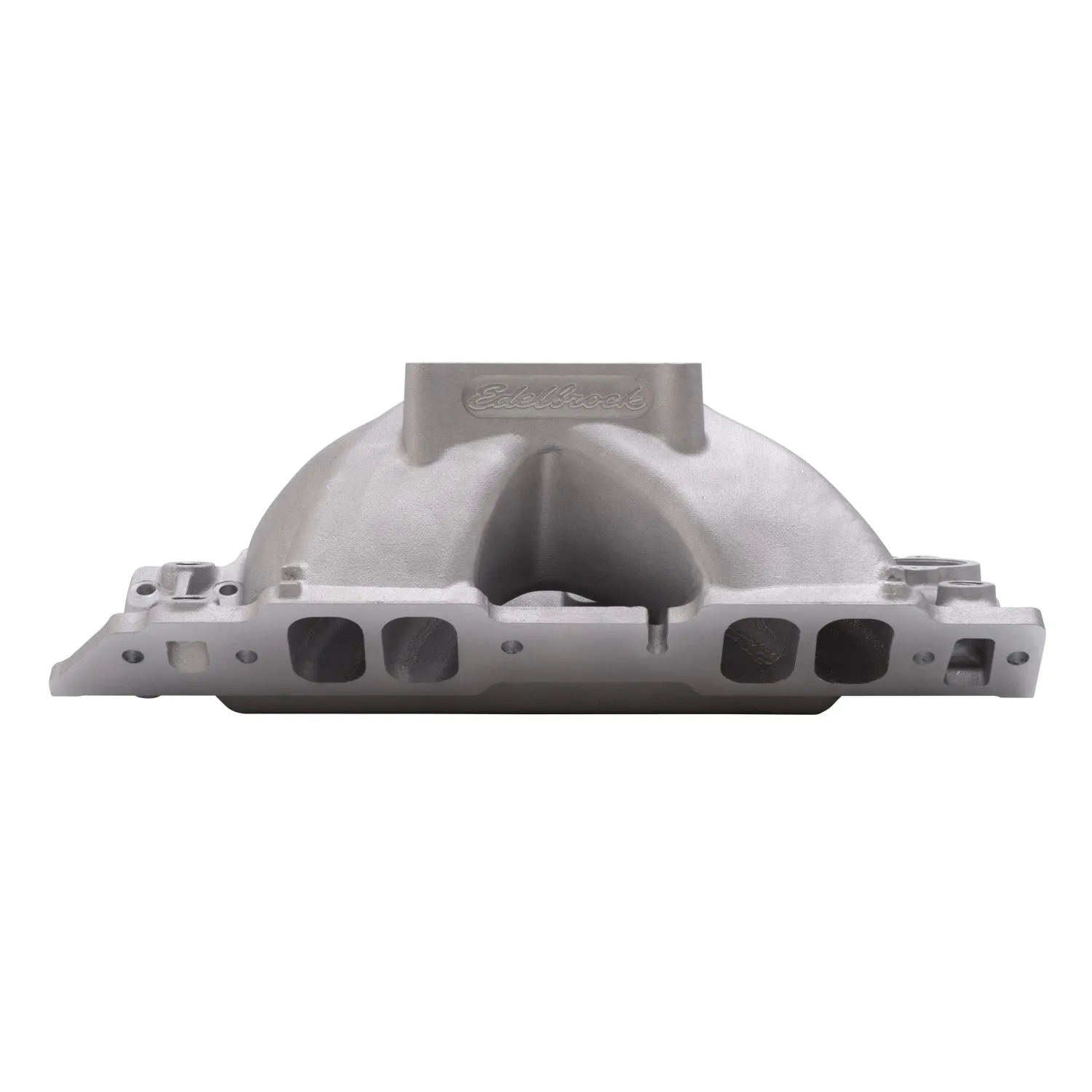

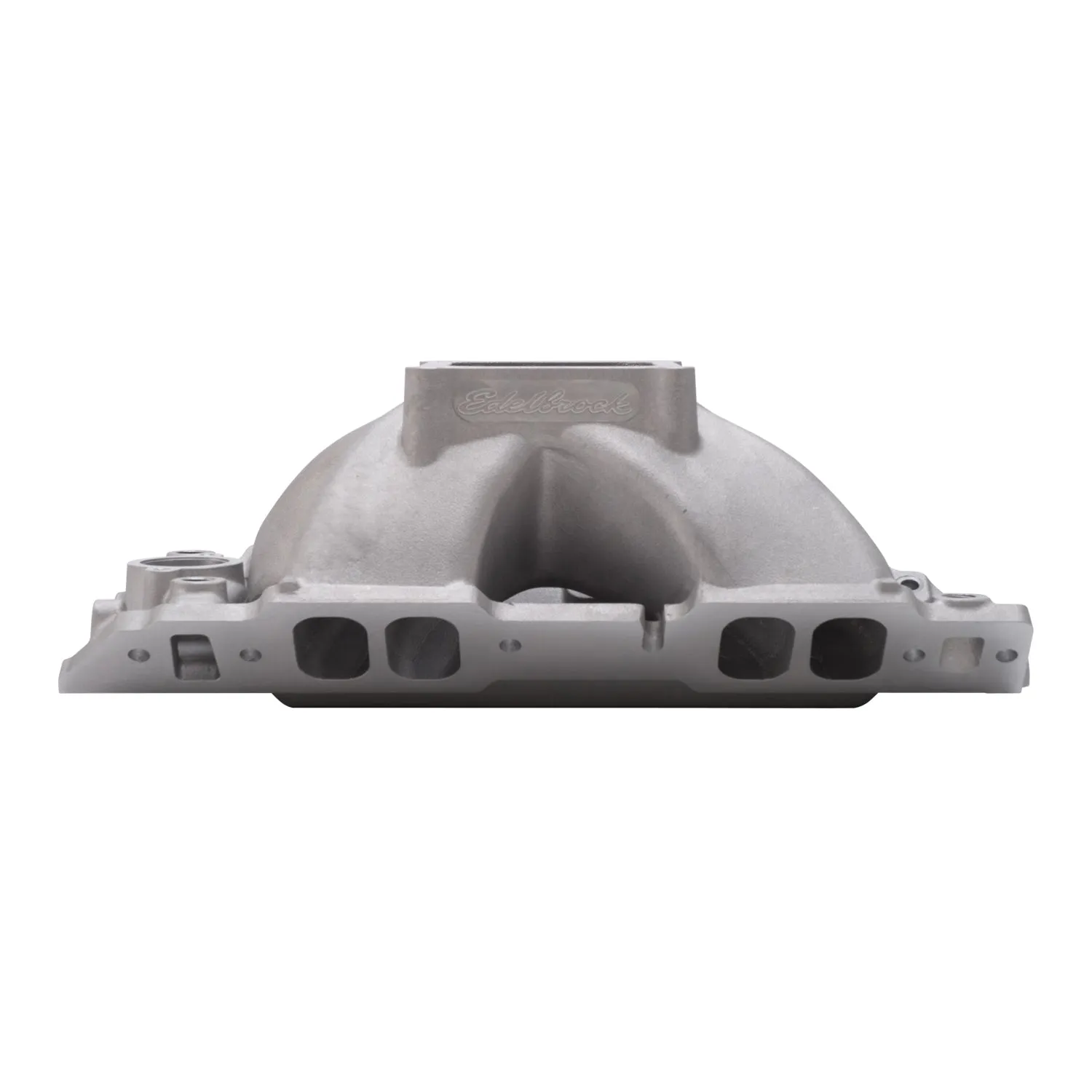

Edelbrock part #2896 Super Victor II is designed for use with large cubic inch big-block Chevy engines using the latest design conventional port heads. These single-plane intake manifolds are ideal for any 1,000 horsepower drag race engine with high air flow requirements. The Edelbrock Super Victor II #2896 intake manifold features an improved runner design with an incredible 5.0 square-inches of runner area in the plenum. Accepts standard height distributors. This manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops. |
| Description_SHO |
{ Sellable : Yes } |
| Description_SHP |
{ eo : 2in.} |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Manifold height: A-7.56", B-7.56" |
| Description_TRA |
Recommended intake gasket: Fel-Pro #1275 |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
• Recommended intake gasket: Fel-Pro # 1275 • Manifold height: A-7.56in.; B-7.56in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port |
No |
| finish |
Satin |
| Flange Type |
4500 |
| Front Maximum Height |
7.560 |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| height |
11.0 |
| length |
24.0 |
| LTL |
N |
| Material |
Aluminum |
| Rear Maximum Height |
7.560 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series |
Victor |
| Single Or Dual Plane Type |
Single |
| Vehicle Model |
Chevrolet |
| weight |
26.8 |
| width |
14.5 |
