| Basic Operating RPM Range |
3500-8500 |
| Center Maximum Height |
7.620 |
| CNC Ported |
No |
| Cylinder Head Type |
Rectangular Port |
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_DES |
INTAKE MANIFOLD |
| Description_EXT |
Edelbrock Super Victor II Intake Manifold for Standard Deck (9.8" with .080 raised port) Chevrolet Big-Block V8 |
| Description_EXT |
Edelbrock Super Victor II Intake Manifold for Standard Deck (9.8in. with .080 raised port) Chevrolet Big-Block V8 |
| Description_FAB |
For 3500 to 8000 RPM High-Performance Engines |
| Description_FAB |
Ideal For 500 cid Engines |
| Description_FAB |
Ideal For Big Block Drag Eng. w/High Flow Req. |
| Description_INV |
Super Victor 2BBC 9.8 Deck 0.80 Raised |
| Description_KEY |
2895; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor; Satin |
| Description_LAB |
Super Victor II BBC Intake Manifold V8 9.8" Deck with .080" Raised Port |
| Description_LAB |
Super Victor II BBC Intake Manifold V8 9.8in. Deck with .080in. Raised Port |
| Description_MKT |

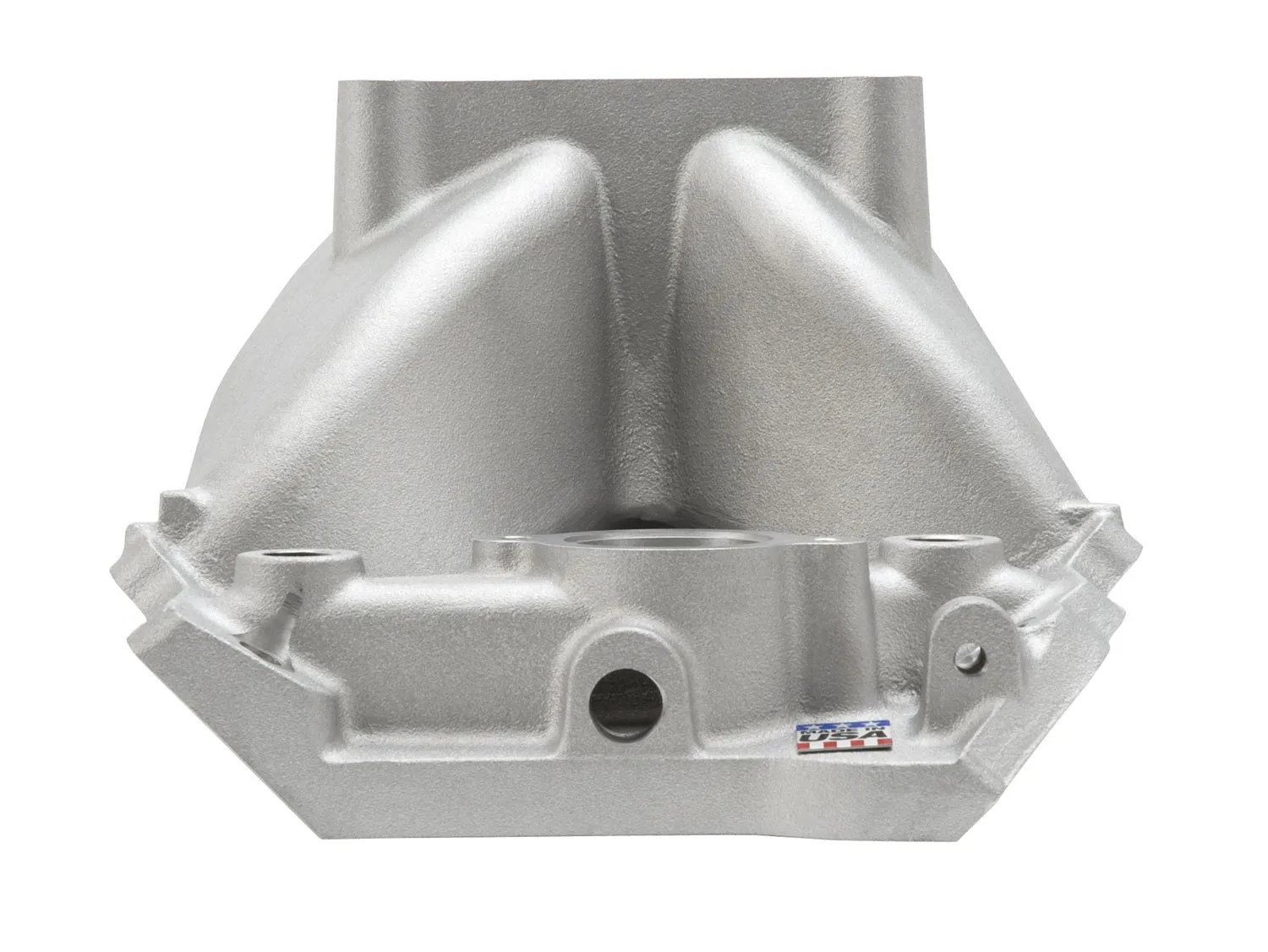

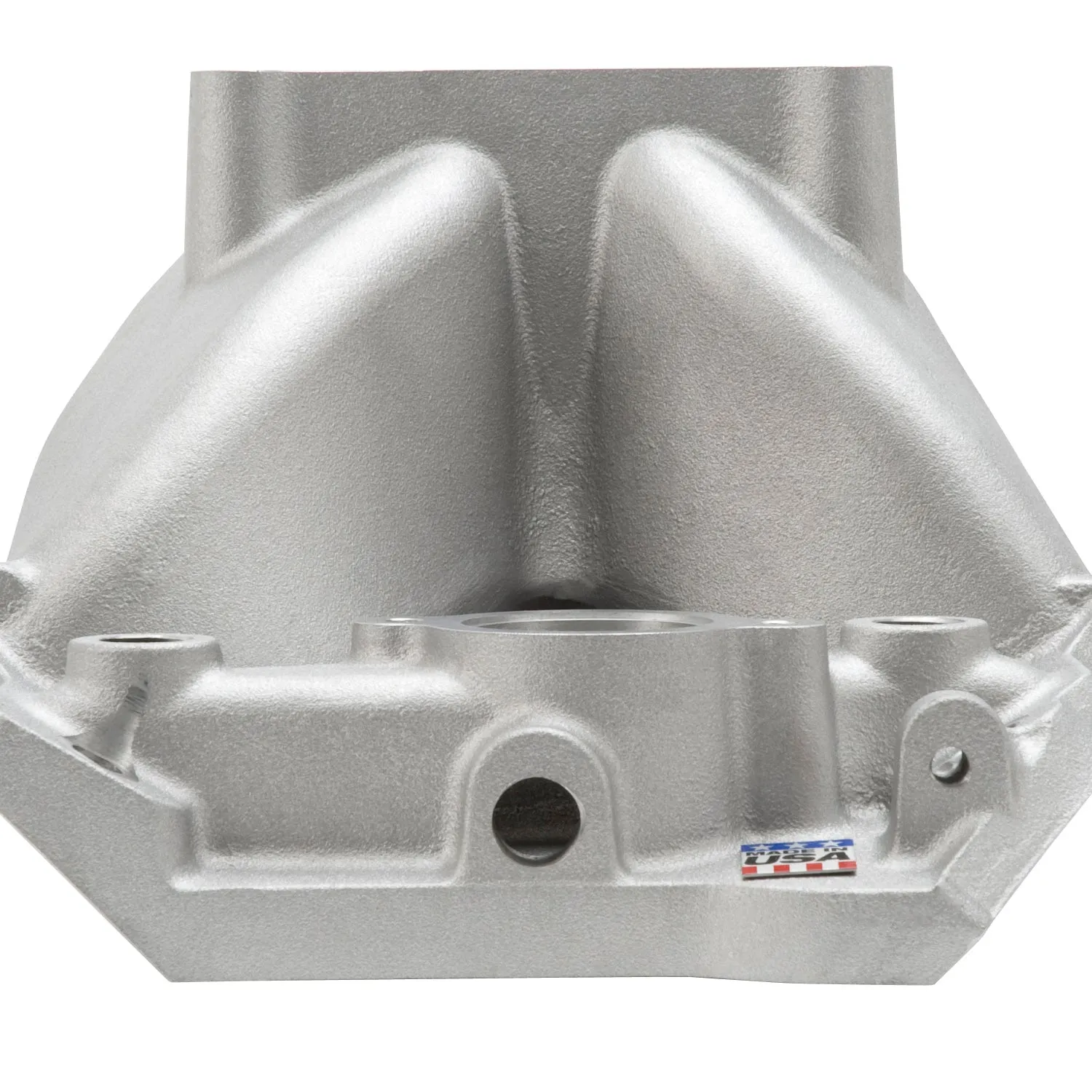

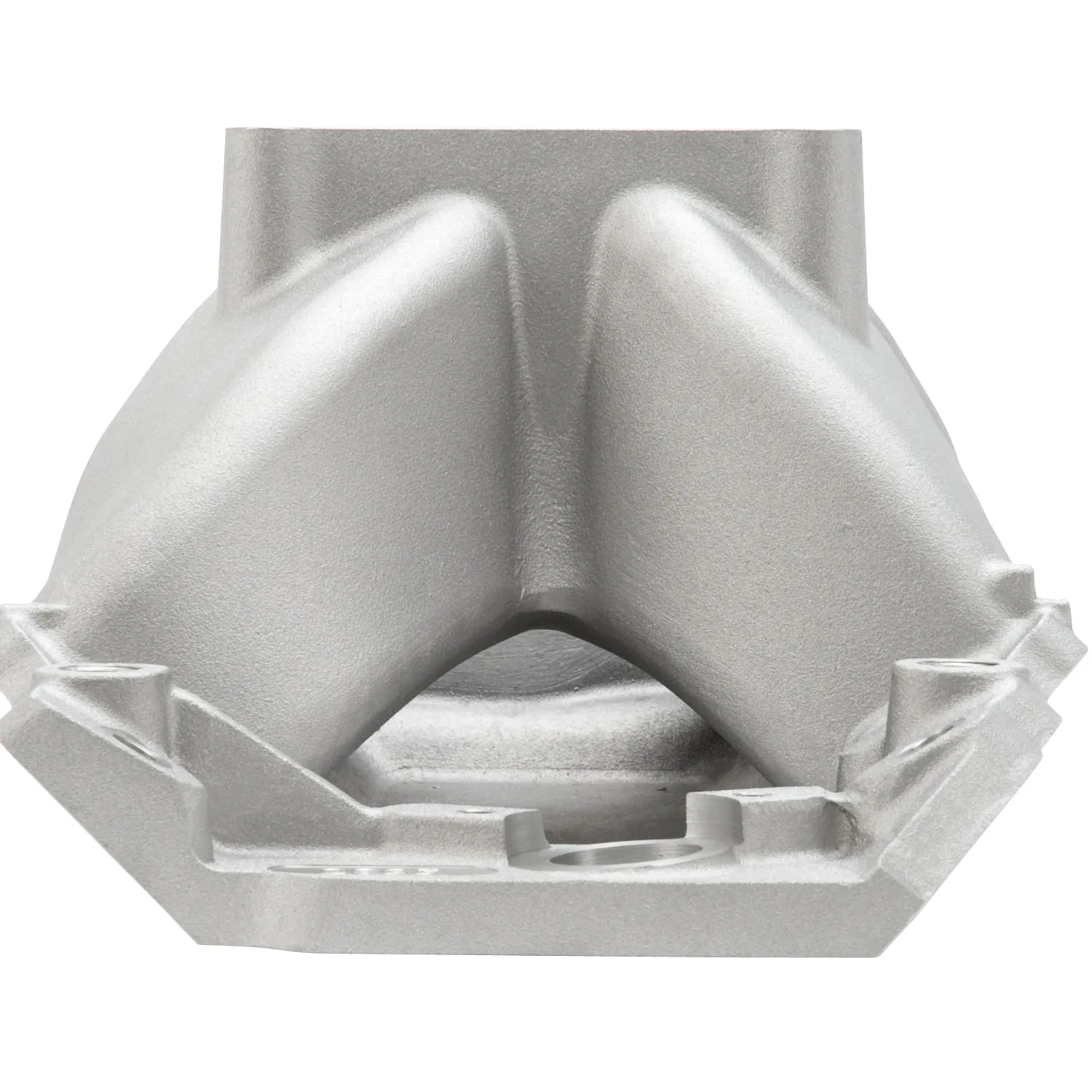

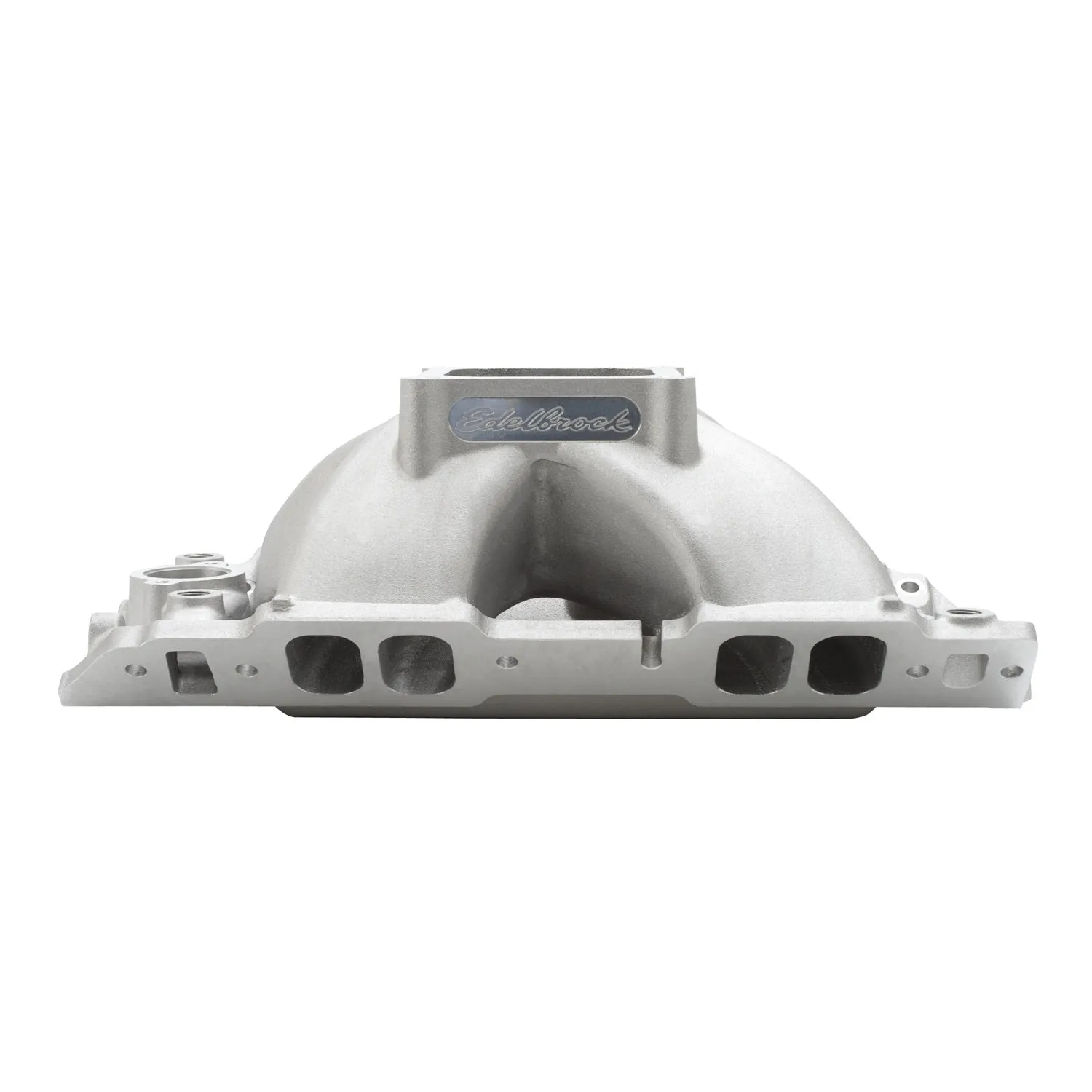

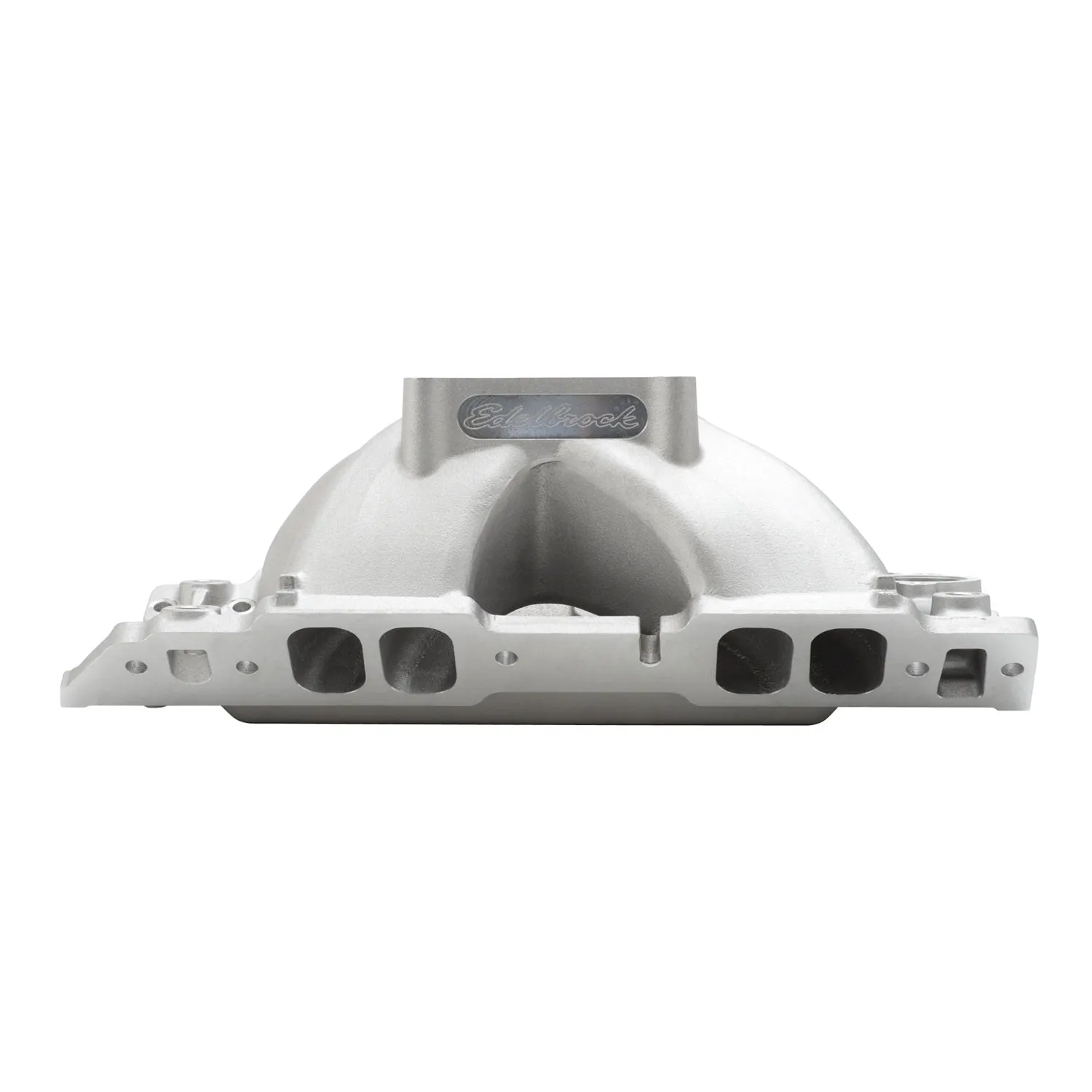

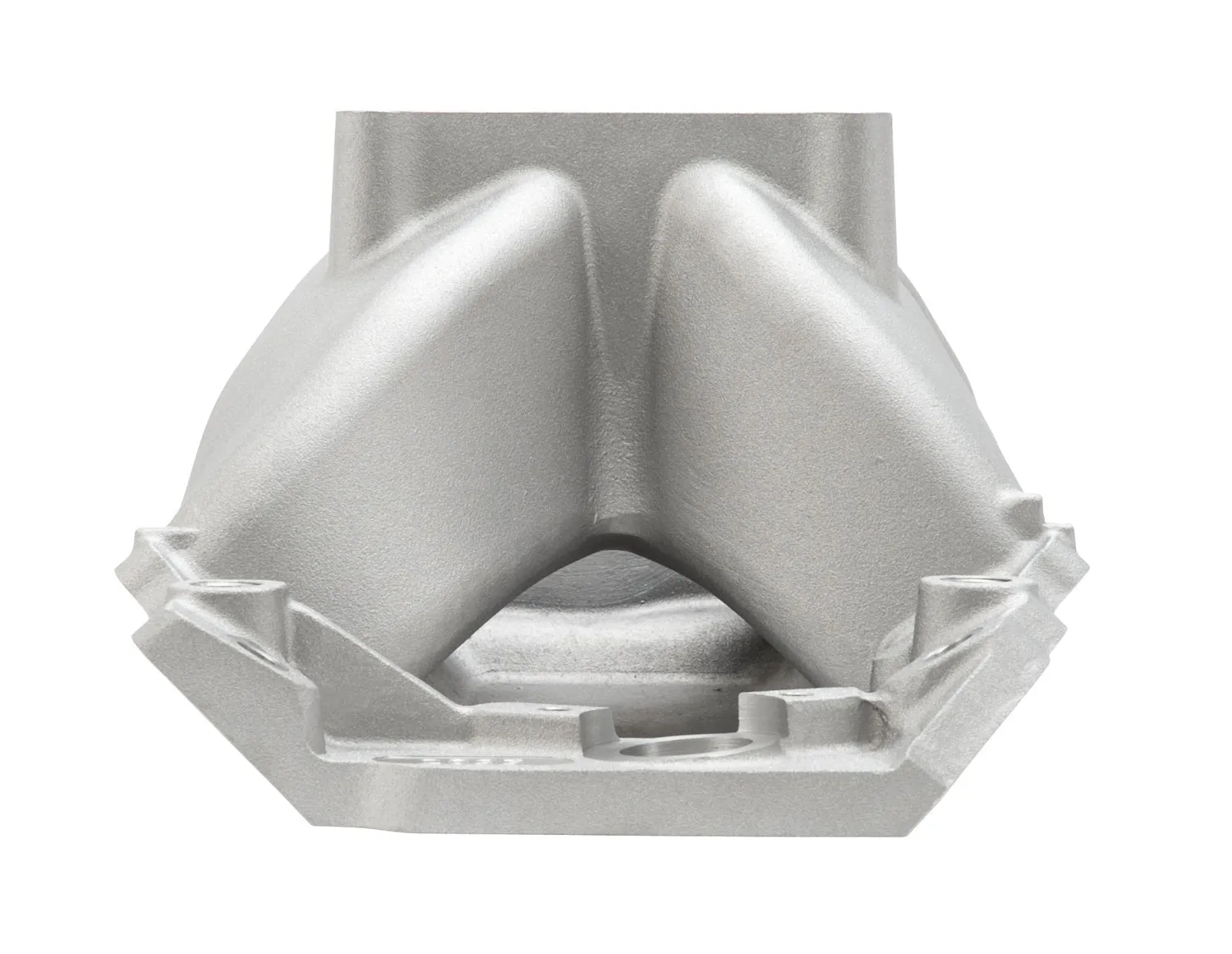

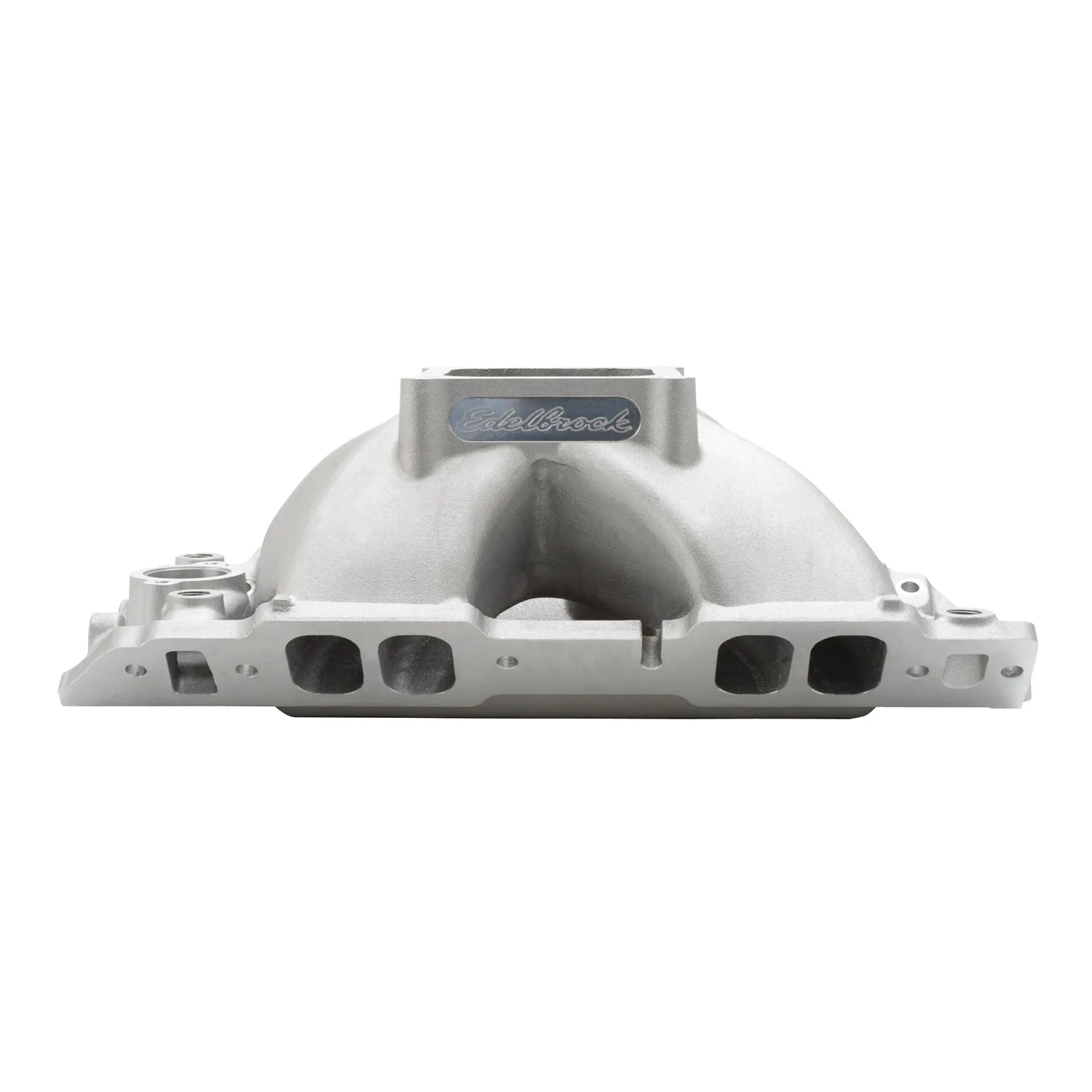

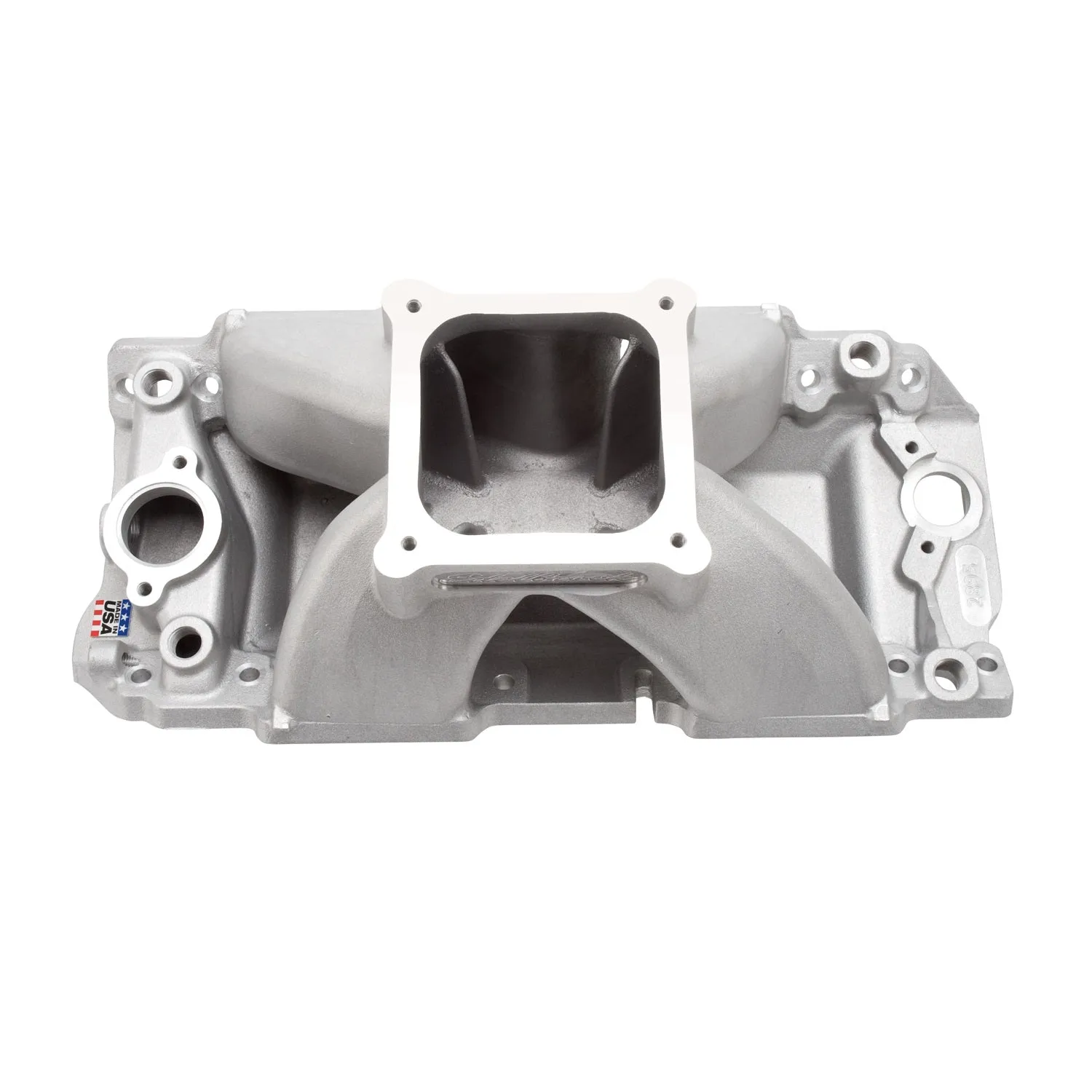

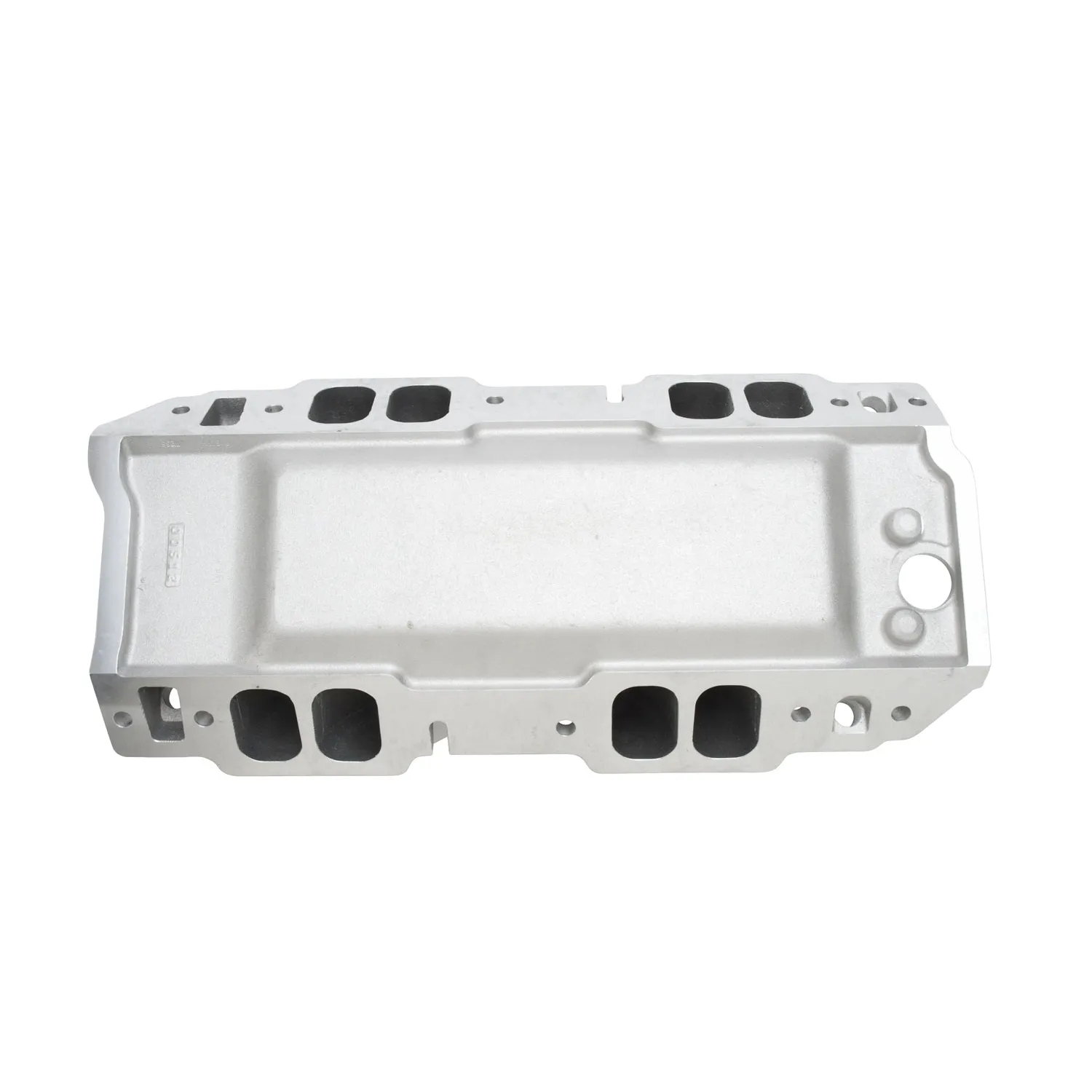

Edelbrock part #2895 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy engines using the latest design conventional port heads. This single-plane intake manifold is ideal for any 1,000 horsepower drag race engine with high air flow requirements. This manifold features thicker flanges resulting with .080" increase in port exit height. Accepts standard height distributors. The Edelbrock Super Victor II #2895 intake manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops. |
| Description_SHO |
{ Sellable : Yes } |
| Description_SHP |
{ eo : 2in.} |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Manifold height: A-6.20", B-6.20" |
| Description_TRA |
Recommended intake gasket: Edelbrock #7208 |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
• Recommended intake gasket: Edelbrock # 7208 • Manifold height: A-6.20in.; B-6.20in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port |
No |
| Emission |
Without EGR |
| Engine Make/Size |
Chevy Big Block (396-502) |
| finish |
Satin |
| Flange Type |
4500 |
| Front Maximum Height |
7.620 |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| height |
9.5 |
| length |
24.25 |
| Material |
Aluminum |
| Number of Carbs |
One |
| Position |
N/A |
| Rear Maximum Height |
7.620 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range |
3500-8500 |
| Series |
Victor |
| Single Or Dual Plane Type |
Single |
| Usage |
Racing |
| Vehicle Model |
Chevrolet |
| WARNING CA Proposition 65 |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight |
27.995 |
| width |
16.5 |
