| Description_ABR |
CARB |
| Description_DEF |
Carburetor |
| Description_DES |
AVS CARB |
| Description_EXT |

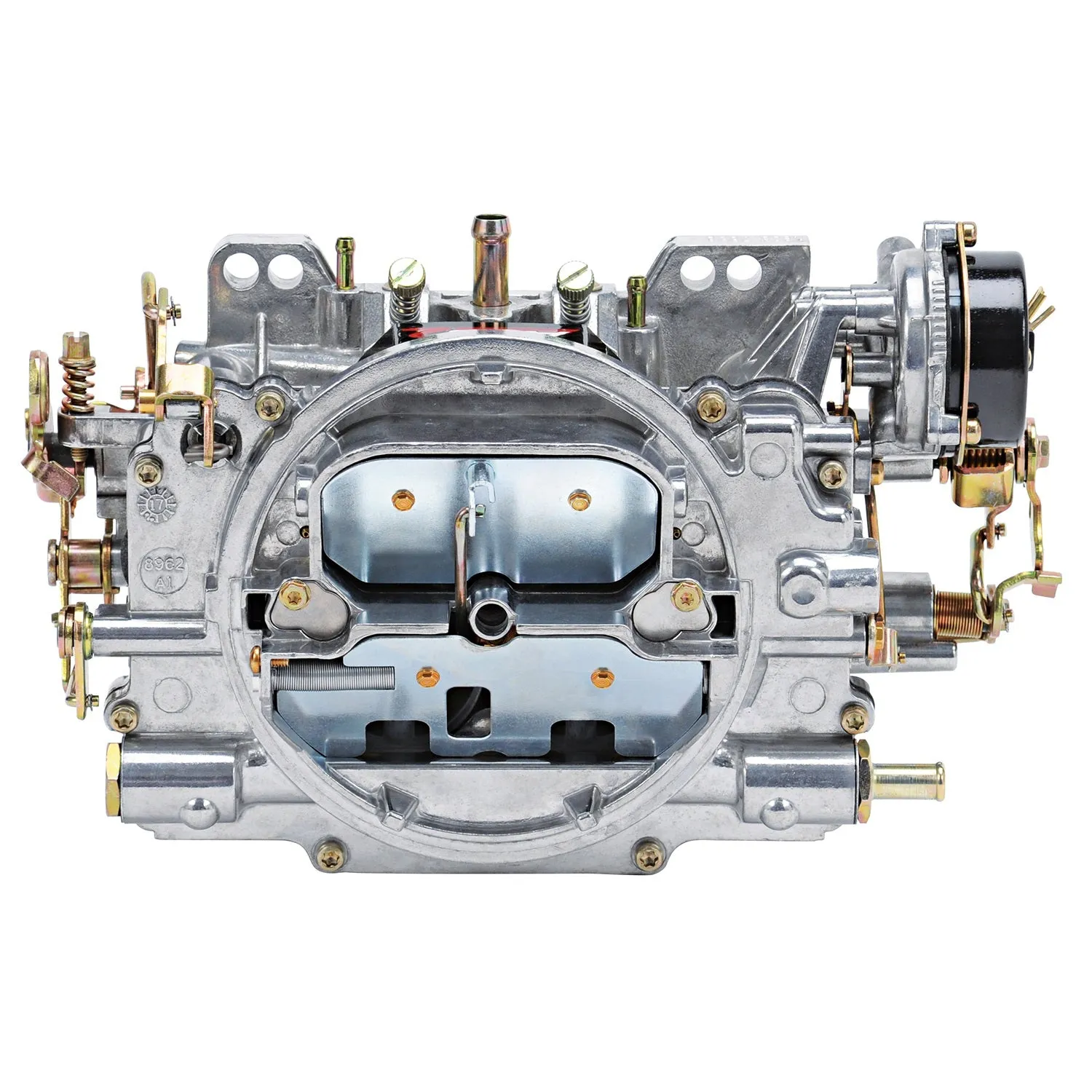

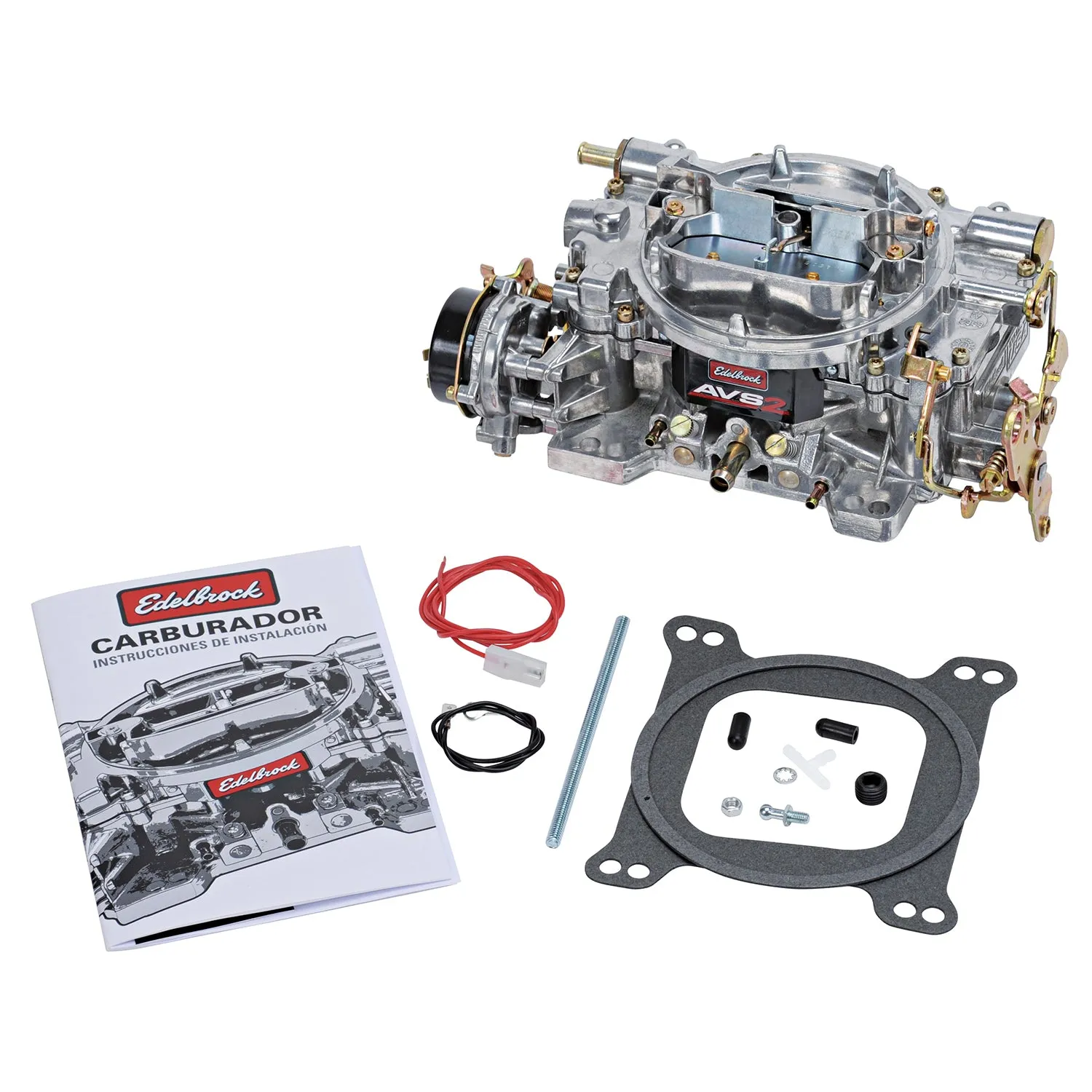

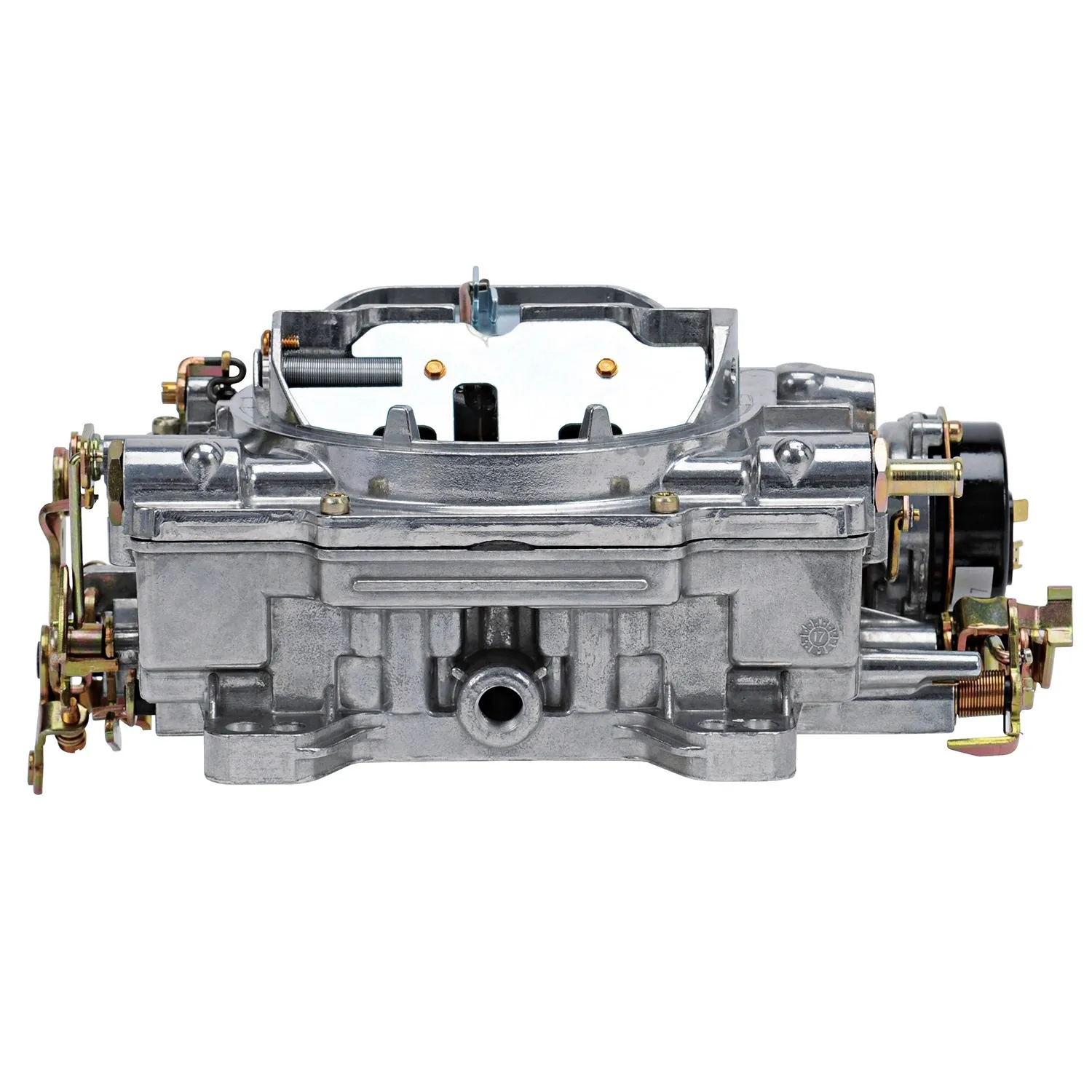

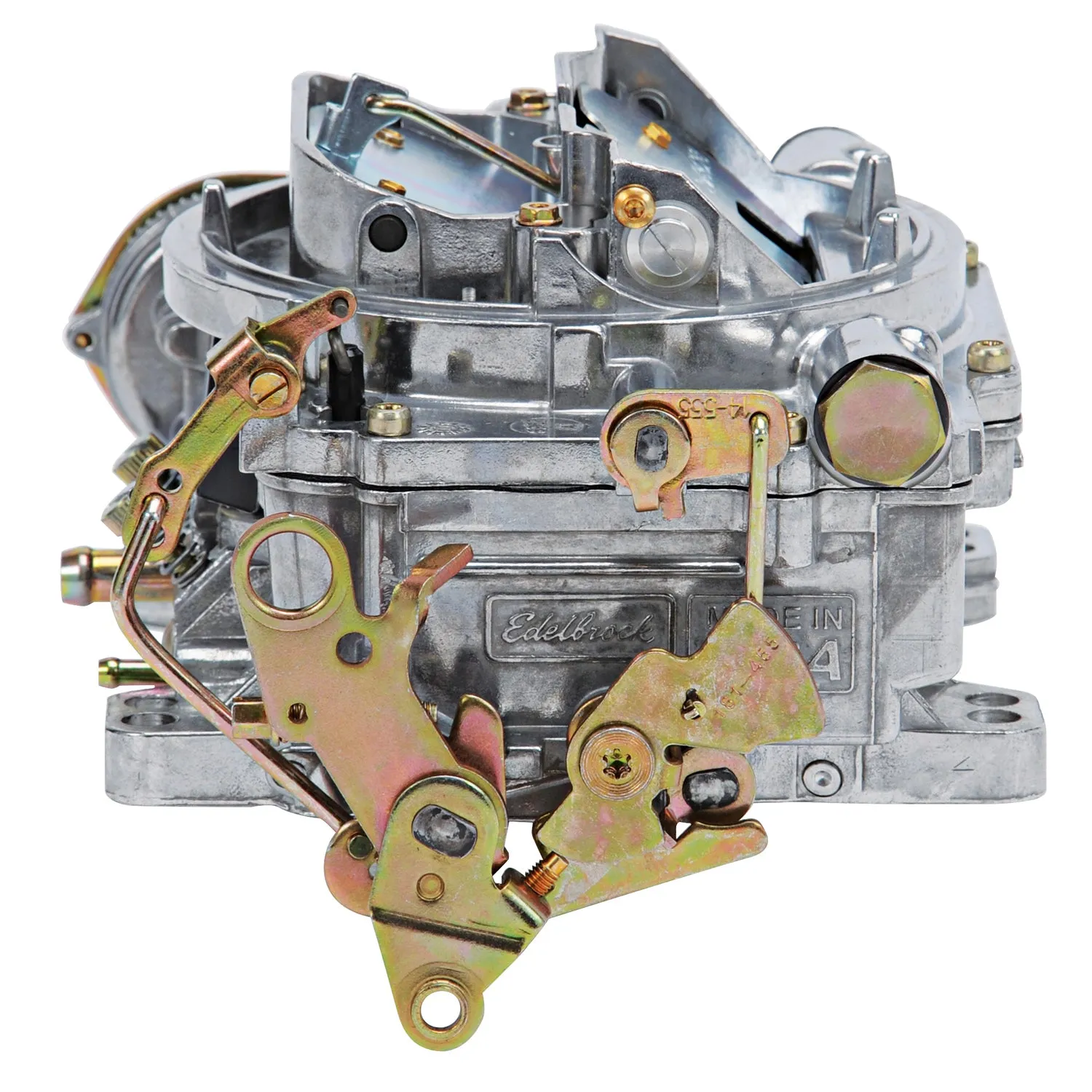

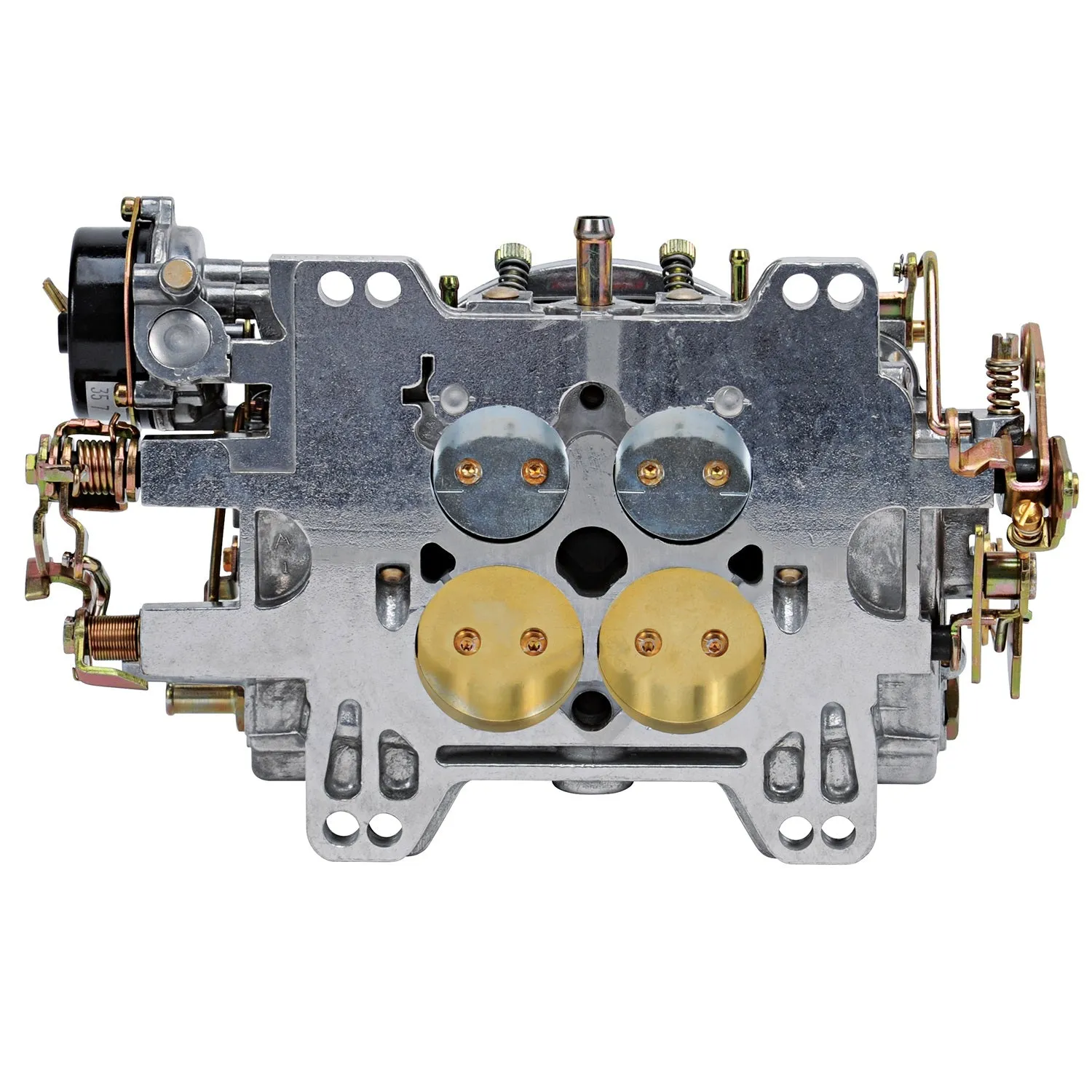

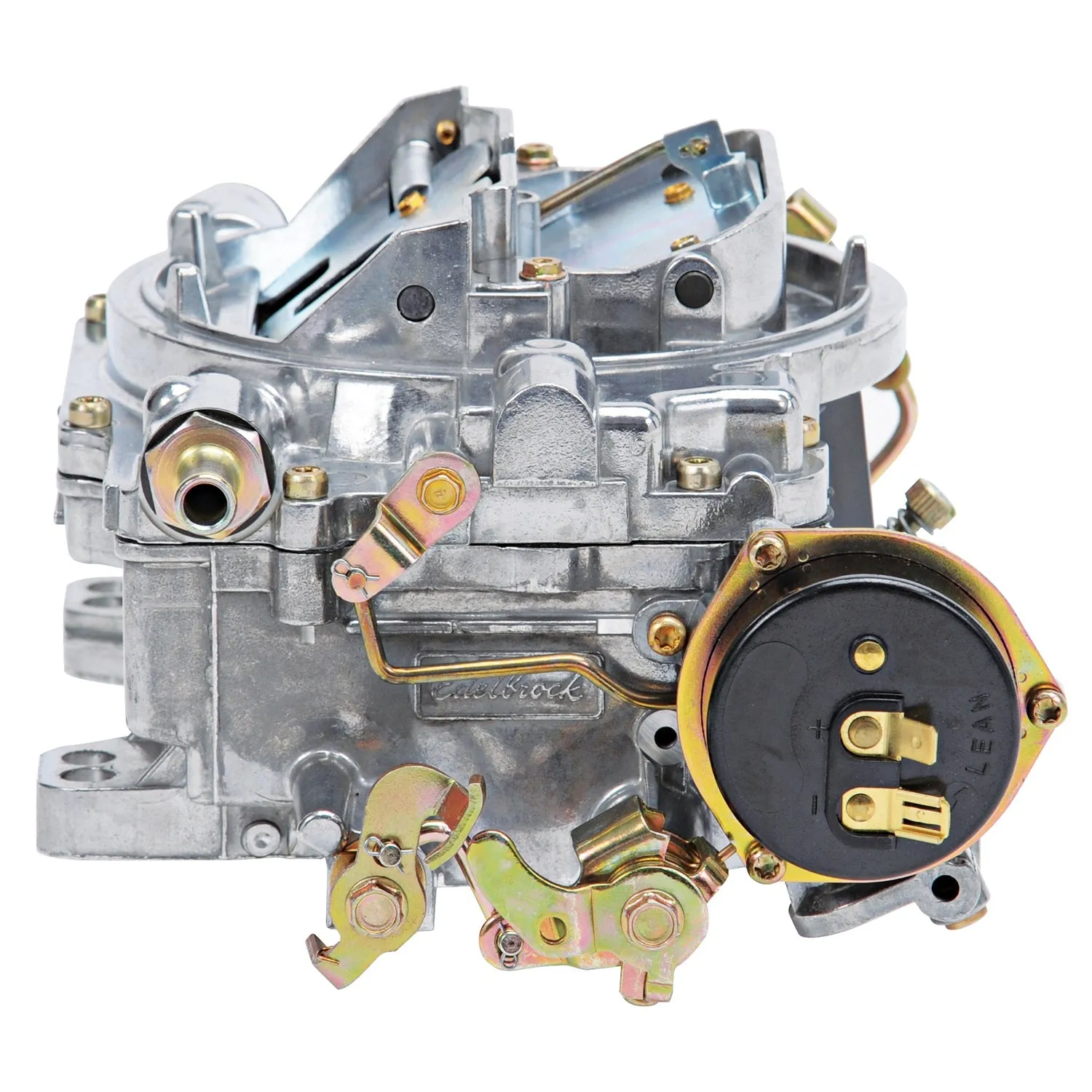

The Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. |
| Description_EXT |
The Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications; match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. |
| Description_FAB |
Annular Flow Primary Boosters |
| Description_FAB |
Delivers Improved Fuel Atomization To Eliminate Flat Spots |
| Description_FAB |
For Single Or Dual Plane Intake Manifolds |
| Description_FAB |
Improved Flow Metering Make It Ideal For Small/Big Block Engines |
| Description_FAB |
Includes Both Timed and Full Vacuum Ports For Ignition Advance |
| Description_FAB |
The Next Generation in Edelbrock Carburetors. |
| Description_INV |
Edelbrock AVS2 500 cfm Carburetor |
| Description_KEY |
1901; Edelbrock; carburetor; carb; AVS2 series; AVS2; 4-barrel; square-bore; square flange; 500 cfm; 500 carb; 4150; EPS; leak free design; holds tune; electric choke; Performance; Qwik-Tune; Qwik-Tune Secondary Air Valve |
| Description_LAB |
AVS2 Carburetor #1901 500 CFM With Electric Choke, Satin Finish (Non-EGR) |
| Description_LAB |
AVS2 Carburetor #1901 500 CFM With Electric Choke; Satin Finish (Non-EGR) |
| Description_MKT |
The Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1901 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade. |
| Description_SHO |
{ Sellable : Yes } |
| Description_SHP |
{ eo : 3in.} |
| Description_TRA |
Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. |
| Description_TRA |
The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor |
| Description_TRA |
Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000 |
| Description_TRA |
You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds |
| Description_TRA |
• Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000 • Edelbrock carburetors are not calibrated for or compatible with alcohol; race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. • The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer s warranty of the carburetor • You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds |
| height |
6.9 |
| length |
12.8 |
| LTL |
N |
| weight |
10.85 |
| width |
11.2 |
